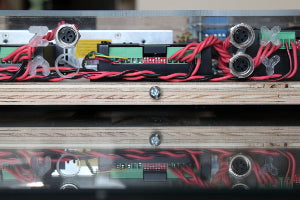

• Tumbnail: Front view where the stepper motor drivers can be seen

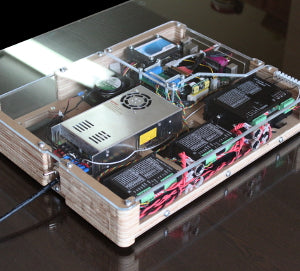

  • Top Left View where most of the CNC electronics can be seen

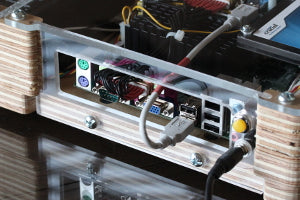

  • Computer IO Connections View

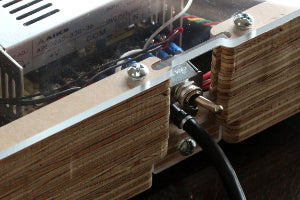

  • Power supply side where the power cable and main switch can be seen

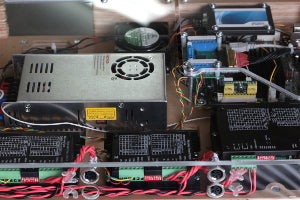

  • Top View of most of the electronics

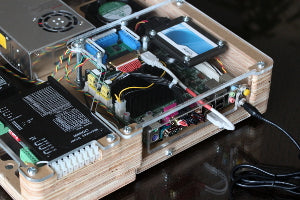

  • Top View looking toward the computer motherboard and hard drive

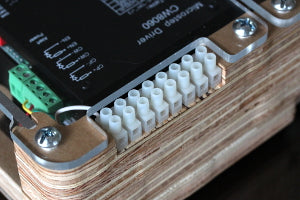

  • View of the CNC input and output connection terminal block
  • Complete bottom view showing the fan filter and areas that the driver's heatsink is exposed externally

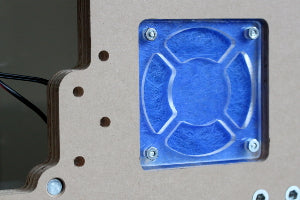

  • View of the fan filter area on the bottom of the case

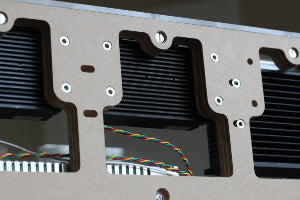

  • Bottom view where the heat sinks of the stepper motor drivers are exposed
1 10

BuildYourCNC

The redSprout CNC Electronics and Computer Plug-and-Play System

The redSprout CNC Electronics and Computer Plug-and-Play System

$1,100.00 USD
$1,100.00 USD
Sale Sold out
Shipping calculated at checkout.
Title

The redSprout is no longer built.

Our current pre-wired system is the Custom Plug-and-Play CNC Control Electronics System — you pick the cabinet, motors, and controller, and it ships wired and tested. If you'd rather wire your own, the electronics combos have the same components without the cabinet. This page is kept for reference and for owners of existing redSprout systems.

This complete computer and CNC machine electronics plug and play system was a smaller-form-factor version of the redLeaf. The system came assembled with the electronics wired and tested, running Linux (Ubuntu) with LinuxCNC or Windows with Mach3 depending on the option purchased.

The basic system had three standard motors (425 oz-in torque) and drivers (3.0 amp per phase), which suited the blueChick, blackToe, or general duty machines. The Heavy Gantry option included two standard motors and drivers plus a heavy duty motor (651 oz-in) and driver (6.0 amp) to move the gantry, which suited the blackFoot or machines with a heavy gantry. The Heavy Duty option used large motors (651 oz-in) and drivers (6.0 amp) on each axis.

The motherboard used in this system was a Mini-ITX with an Atom processor permanently affixed with a heat sink. This allowed the overall form to be smaller since the motherboard had a smaller footprint and there was no need for an ATX computer PSU; it was powered by a DC-DC converter and a DC adapter. The hard drive was either a 2.5" 60 GB SSD or a 2.5" 500GB standard hard drive.

The All-In-One Electronics/Computer System Included:
  • Motor Drivers 40 Volts 3.0 Amps Max or 6.0 Amps Max (capable of 1/64 microstepping) depending on chosen option
  • 425 oz-in or 651 oz-in bipolar motors depending on chosen option
  • breakout board
  • 36 Volt 8.8 Amp Power Supply
  • Panel Motor Cable Connectors
  • Fan (Near the Middle)
  • Mini-ITX Motherboard with Parallel Port and Standard Connectors - 2 Gigs of Installed DDR3 RAM
  • Integrated Intel Atom Processor
  • 500 GB SATA Hard Drive or 60 GB Solid State Drive (SSD)
  • Operating System (Windows 7 or Linux Depending on Option Purchased)
  • Wood, Plastic and Fasteners in a Clean and Aesthetic Arrangement to Encase the System
View full details

Questions & Answers

Have a Question?

Ask a Question

  • What are the other two dimensions of the 1/2" ID bearings used to support lead screws?

    Inside Diameter: 1/2" (actual dimension 0.4975 inches or 12.63 mm) - Outside Diameter: 1.122 inches or 28.4988 mm - Thickness: .31 inches or 7.89 mm Thank you for this question as it caused me to update the description: https://www.buildyourcnc.com/item/bearing-!5-standardbearing

  • DOES THE PLUG AND PLAY ELECTRONICS COMPUTER FOR 3 AXIS CNC MACHINE HAVE ENOUGH MEMORY RAM ADDITIONAL SOFTWARE (BOBCAD-CAM, BOBART, MACH3) TO BE ADDED FUNCTION WELL?

    The plug and play system does have enough memory for additional software. The redLeaf comes standard with a 1TB hard drive.

  • Are the Assembled CNC Electronics Systems compatible with a laptop?

    Our Computer CNC-systems, come integrated with all the required electronics (motherboard, HDD, PSU). Only input devices(mouse, keyboard, monitor) and software are required to be purchased separately, to have a complete ready to go system. Here (https://www.buildyourcnc.com/AssembledElectronics.aspx) you can see the available option of including windows 7 to be installed with our computer system. You can use an external HDD or Flash-drive, to transfer data from your laptop/computer to the built in computer system.
