Vacuum Nozzle and Cups for SMD Pick and Place
Vacuum Nozzle and Cups for SMD Pick and Place
Couldn't load pickup availability

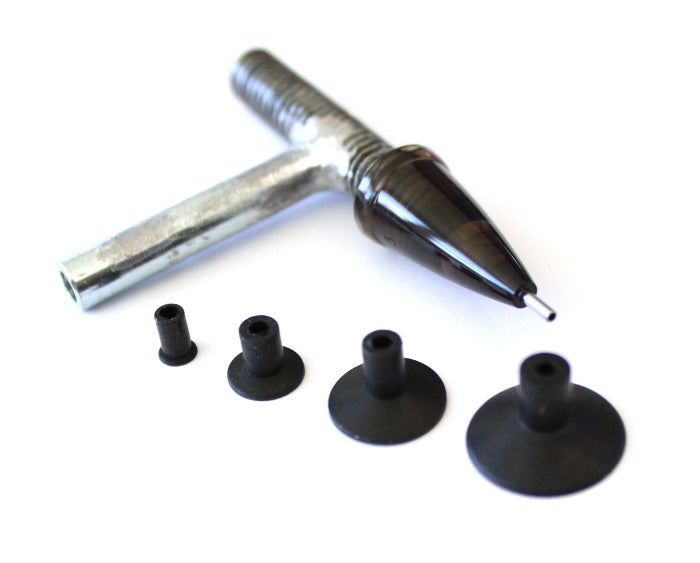

This is a tool to serve as a pick up for SMD parts and placing them on a PCB board. This part accepts a tube to connect to a vacuum source and a tip to pick up small parts. If larger SMD parts are needed to be moved, vacuum cups are included for this purpose.
Share
Questions & Answers
Have a Question?
-
What Relay do I need for the Mach3 usb motion card?
You will need a 24V DC Solid State Relay to accompany the Mach3 USB Motion Card as the outputs on that motion card requires a 24V Power Supply. Until we start supplying this relay, you can find these relays here: https://www.mcmaster.com/#relays/=1d535ws The Mach3 USB Motion card link: https://www.buildyourcnc.com/item/electronicsAndMotors-electronic-component-breakout-Mach3-USB-Board Additional Information: Specifically, you will need a relay link this one: https://www.mcmaster.com/#7170k1/=1d536ko Additional Information: This one has an easier method of connecting: https://www.mcmaster.com/#7266k38/=1d53765
