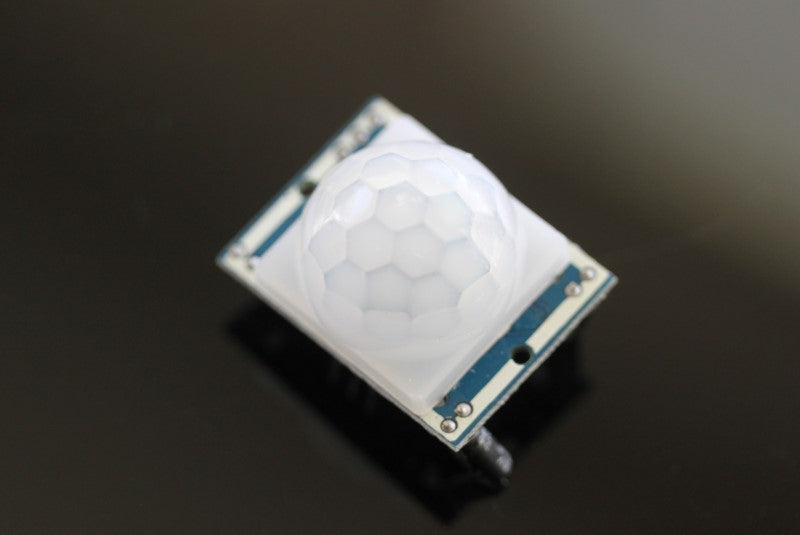

PIR Sensor Pyroelectric Infrared Motion Detector

A PIR sensor is used to sense motion (usually human motion) within a specified range. They detect small amounts of radiation using an IR sensor. Using a motion sensor is a good way to allow your device to detect if a human (or animal) has entered, exited or approached a specific area. Technical Specs:

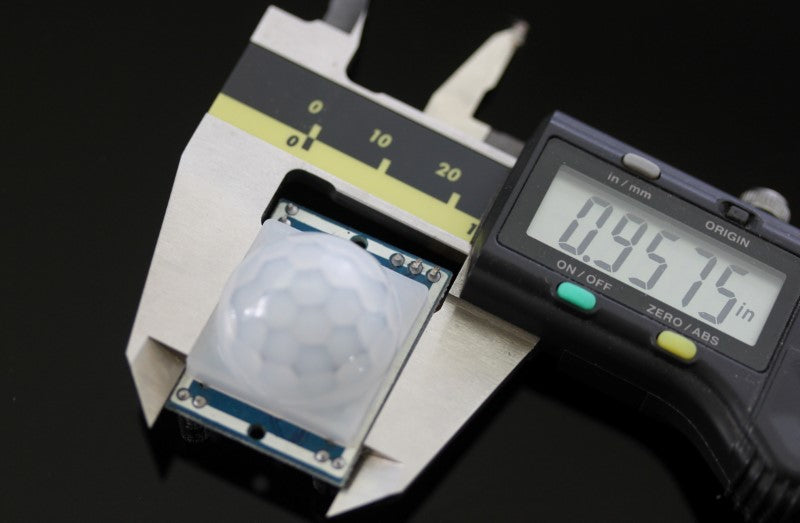

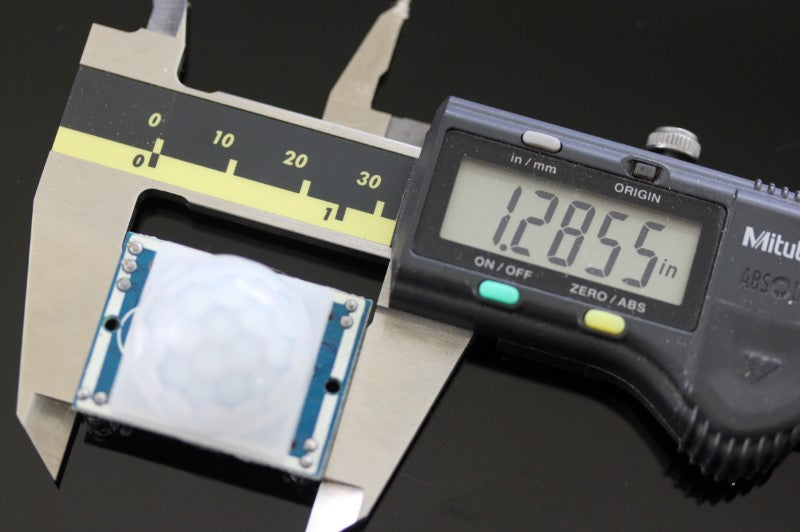

• Dimensions: 1.25" (3.2cm) x .95" (2.4cm) x .70" (1.8cm)

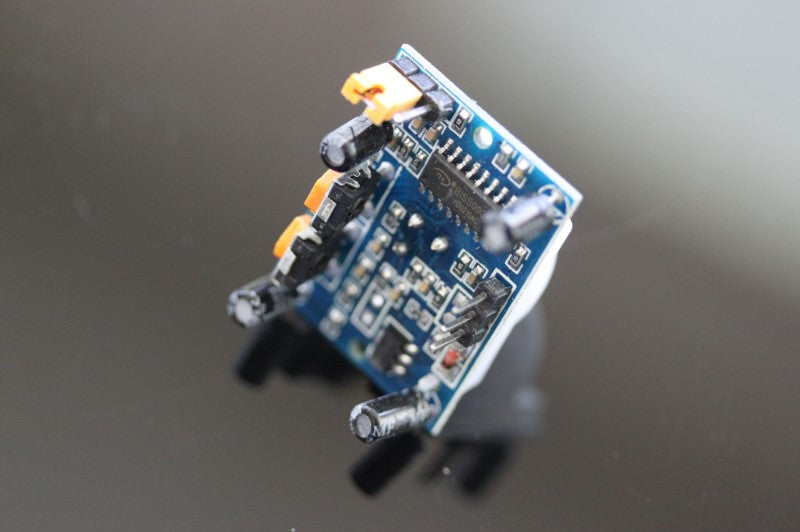

• Infrared sensor with control circuit board

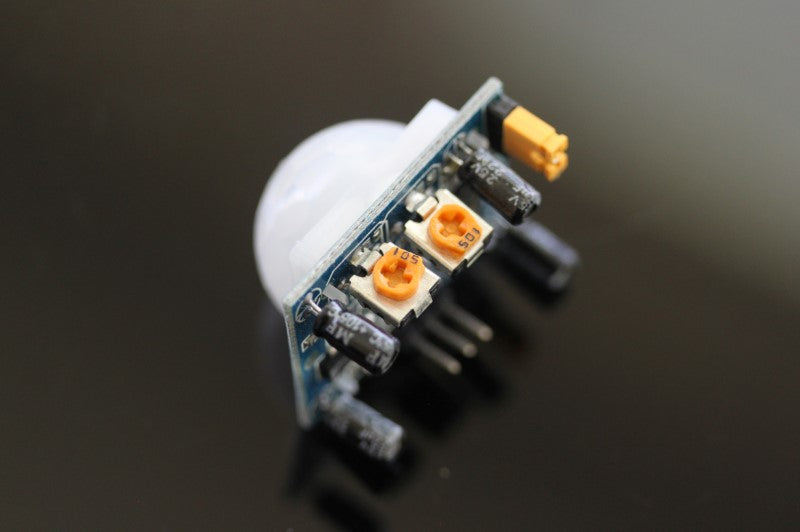

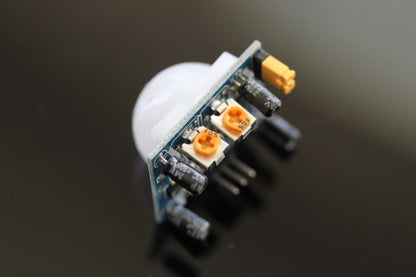

• Sensitivity and Holding Time: Adjustable
• Working Voltage Range: DC 4.5V- 20V
• Current drain:<60uA
• Voltage Output: High/Low level signal:3.3V TTL output
• Detection distance: 3--7M(can be adjusted)
• Detection range: <140°
• Delay time: 5-200S(can be adjusted, default 5s +-3%)
• Blockade time: 2.5 S (default)
• Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
• Work temperature:-20-+80°C
• Trigger Method: L unrepeatable trigger / H repeatable trigger
