Handheld Auto Ranging Digital Multimeter
Handheld Auto Ranging Digital Multimeter
Regular price
$17.95 USD
Regular price
Sale price
$17.95 USD
Unit price
/
per
Couldn't load pickup availability
This pocket-sized handheld multimeter is perfect for those looking for an affordable multimeter. This digital multimeter can be used to test voltage, current, and resistance. This particular multimeter also features auto-ranging.
- DC Voltage: 400mV/4V/40V/400V/600V Basic Accuracy ±(0.5%+4)
- AC Voltage: 400mV/4V/40V/400V/600V Basic Accuracy ±(0.8%+6)
- Resistance: 400O/4kO/40kO400kO/4MO/40MO Basic Accuracy ±(0.8%+4)
- Capacitance: 4nF/40nF/400nf/4uF/40uF/200uf Basic Accuracy ±(3.5%+8)
- Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz Basic Accuracy ±(0.5%+4)
- Diode test v
- Continuity buzzer v
- Low battery indication v
- Data Hold v
- Auto power off v
- Function protection v
- Frequency v
- Duty cycle measuring v
- Input impedance: 10MO
- Sampling rate: 3 times/s
- AC Frequency response: 40~400Hz
- Operation way: Auto range
- Max. Display: 3999
- LCD size : 55×43mm 2.16" x 1.69"
- Product Dimensions: 117×80×19mm 4.6" x 3.14" x .75"
Share

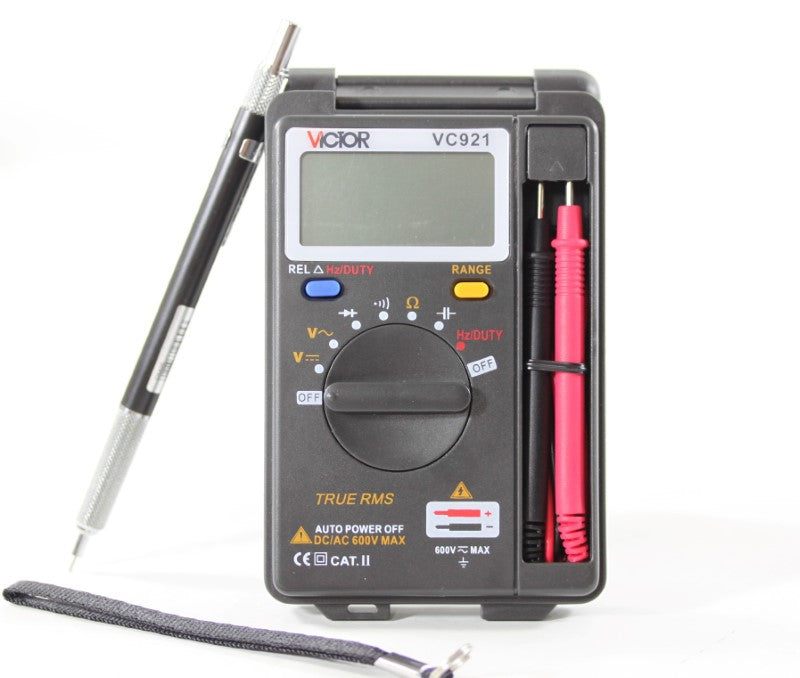

![Handheld auto range multimeter](http://newbiehack.com/cdn/shop/files/IMG_9374-800.jpg?v=1730085397&width=1445)

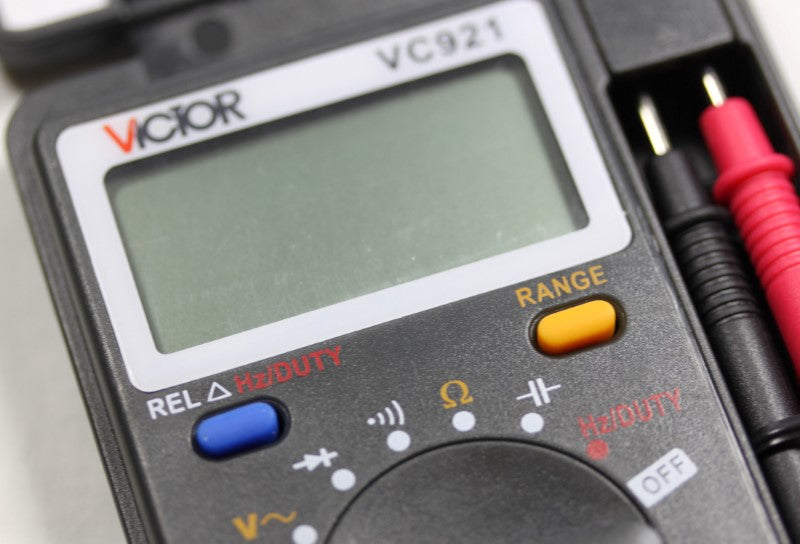

![multimeter close-up on range button](http://newbiehack.com/cdn/shop/files/IMG_9364-800.jpg?v=1730085397&width=1445)

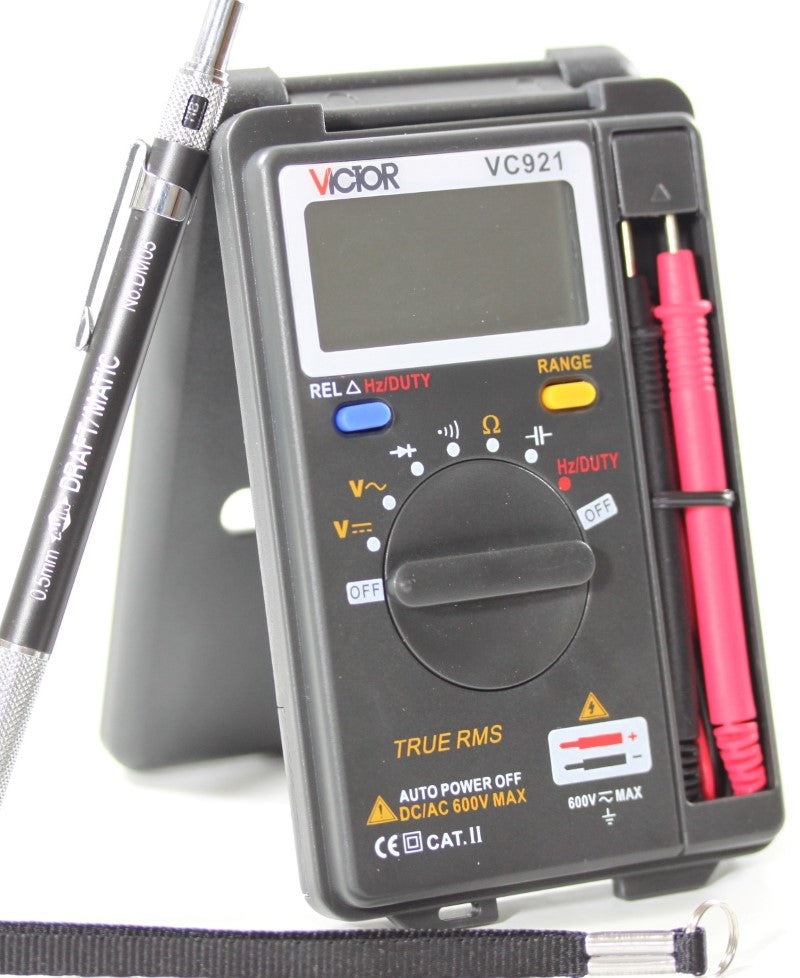

![multimeter angled view](http://newbiehack.com/cdn/shop/files/IMG_9365-800.jpg?v=1730085397&width=1445)
