Linear Guide Rail 20mm (0.78")OUT OF STOCK
Linear Guide Rail 20mm (0.78")OUT OF STOCK
Regular price
$2.50 USD
Regular price
Sale price
$2.50 USD
Unit price
/
per
Couldn't load pickup availability
We now offer Linear Guide rails made of high-quality hardened steel to add a new dimension of reinforcement to your machine. These rails pair with our 20mm Linear Ball Bearing Blocks. Order Info: add desired length in inches to cart (QTY 1 = 1") , if multiple lengths are needed, please contact us to let us know. These SBR20 round linear guide rail should be ordered in increments of 11 inches in order to provide you with 2 sets of mounting holes on both sides. These will pair with our 20mm Linear Ball Bearing Blocks Material: Grc15 steel Hardness: HRC60-HRC62 Guide Width: 20 mm (0.78 in) Overall Height of Rail and Base: 37 mm (1.46 in) Width of Base: 45 mm (1.77 in) Mounting Holes on Center Widthwise: 30.226 mm (1.19 in) Mounting Holes on Center Lengthwise: 150 mm (5.9 in) Note: Maximum single length for 1 piece of Linear Guide rail is 1400mm or 55.11 inches
Share

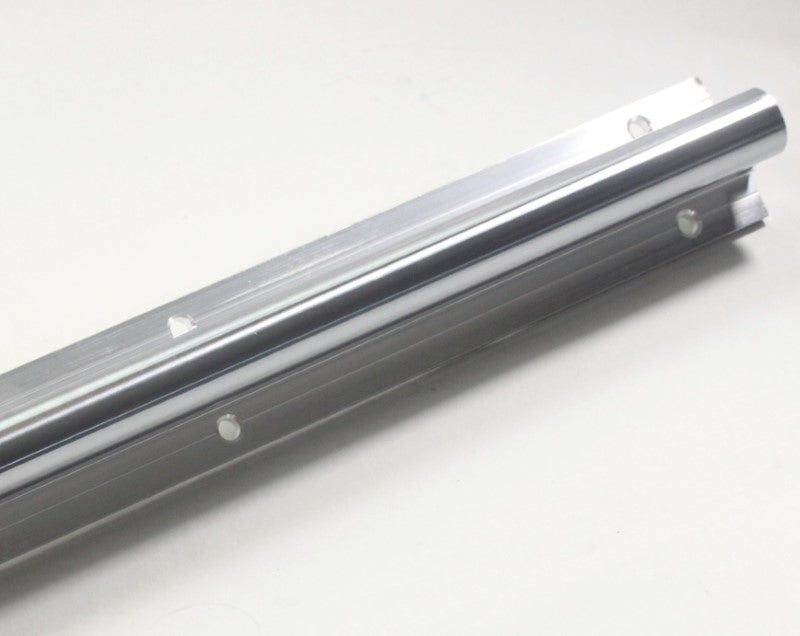

![Linear Guide Rail with view of both sides](http://newbiehack.com/cdn/shop/files/LinearGuideRail_1-800.jpg?v=1730085321&width=1445)

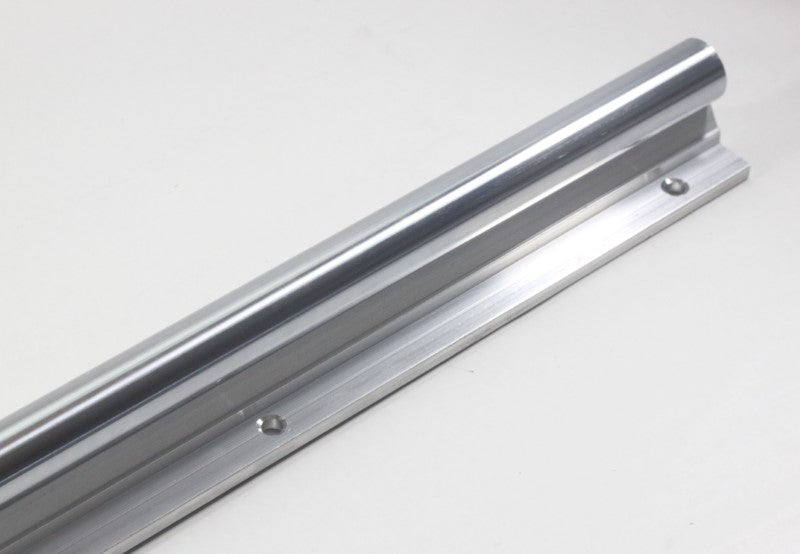

![Linear Guide Rail](http://newbiehack.com/cdn/shop/files/LinearGuideRail_2-800.jpg?v=1730085321&width=1445)

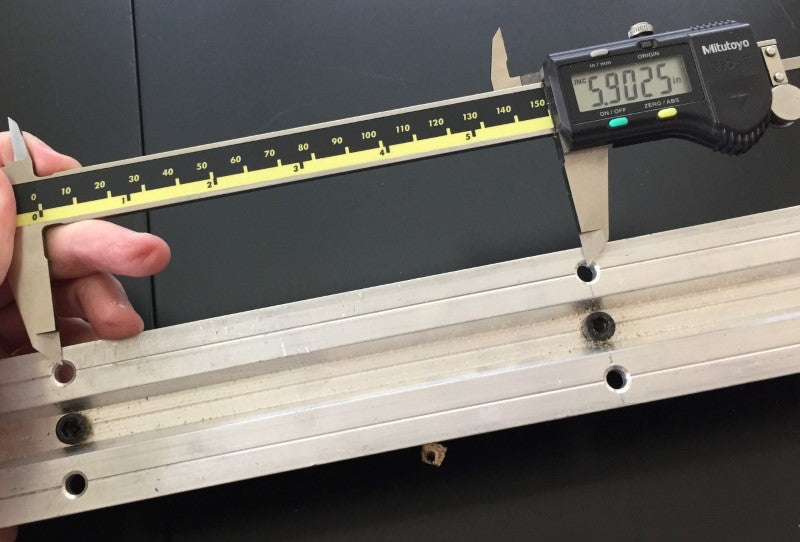

![Image of measurement from mounting hole to mounting hole lengthwise](http://newbiehack.com/cdn/shop/files/Linear_Round_Rail_20mm_Image1-800.jpg?v=1730085321&width=1445)

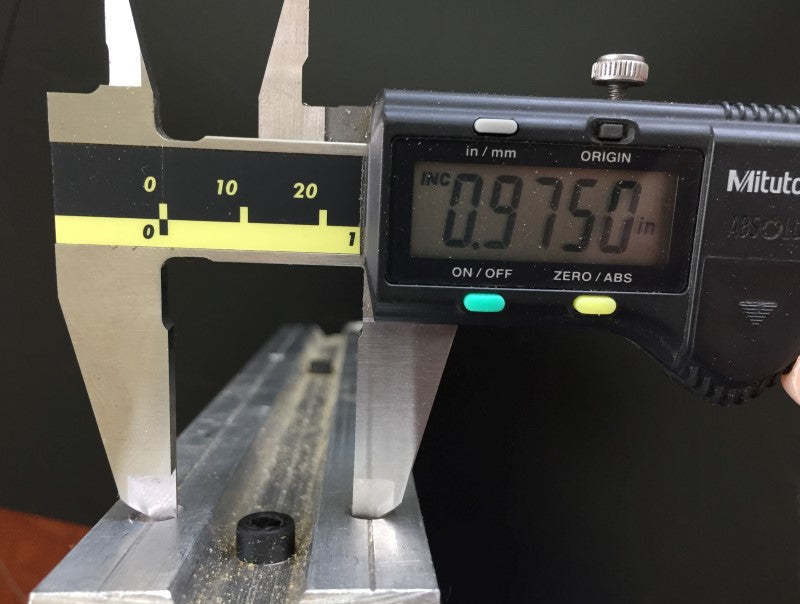

![Image of the measurement from inside dimension of mounting holes widthwise at .975 inches](http://newbiehack.com/cdn/shop/files/Linear_Round_Rail_20mm_Image2-800.jpg?v=1730085321&width=1445)

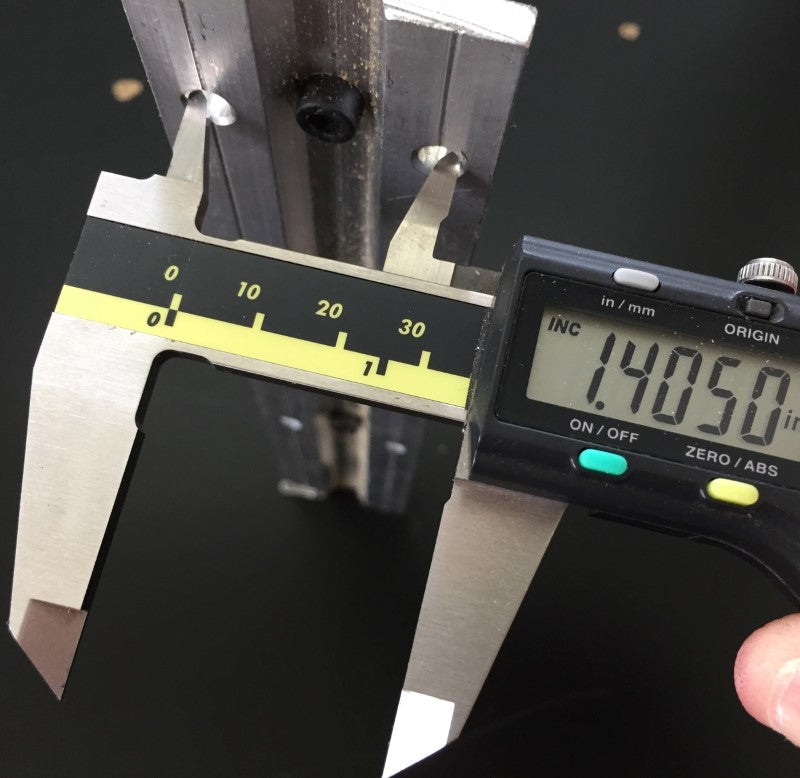

![Image of measurement between mounting holes outside dimension at 1.405 inches](http://newbiehack.com/cdn/shop/files/Linear_Round_Rail_20mm_Image3-800.jpg?v=1730085321&width=1445)

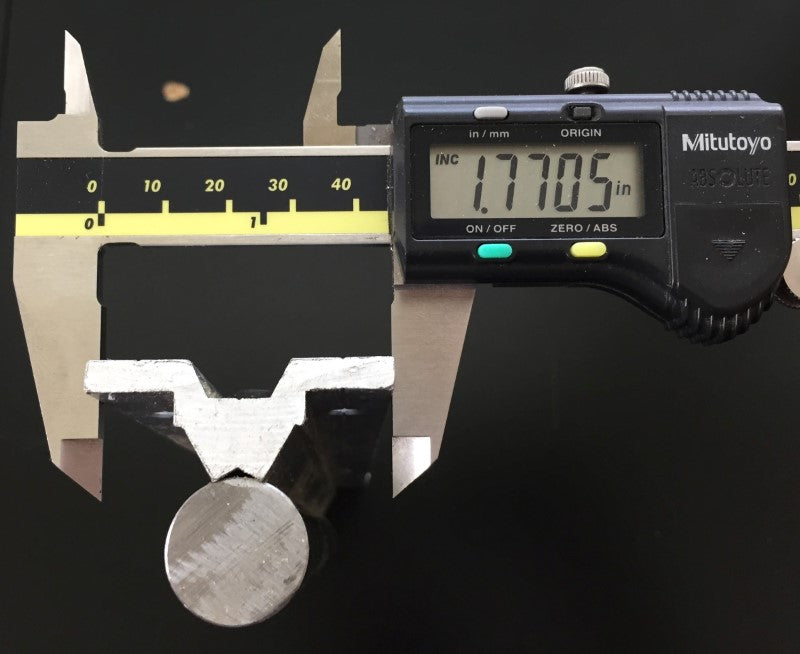

![Images of the width of the base of the linear round rail guide at 1.7705 inches](http://newbiehack.com/cdn/shop/files/Linear_Round_Rail_20mm_Image4-800.jpg?v=1730085321&width=1445)

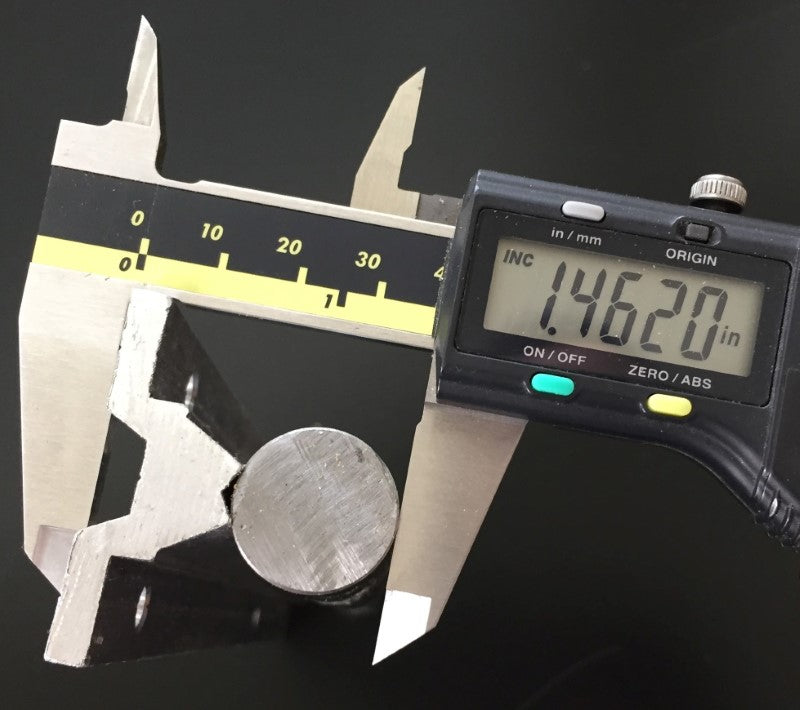

![Image of the height of the linear round 20mm rail at 1.462 inches](http://newbiehack.com/cdn/shop/files/Linear_Round_Rail_20mm_Image5-800.jpg?v=1730085321&width=1445)
