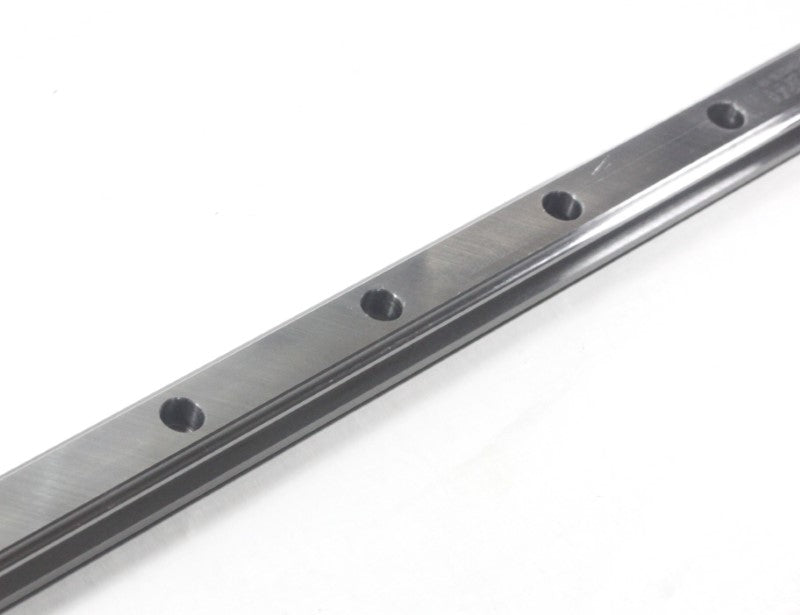

• HIWIN linear rails

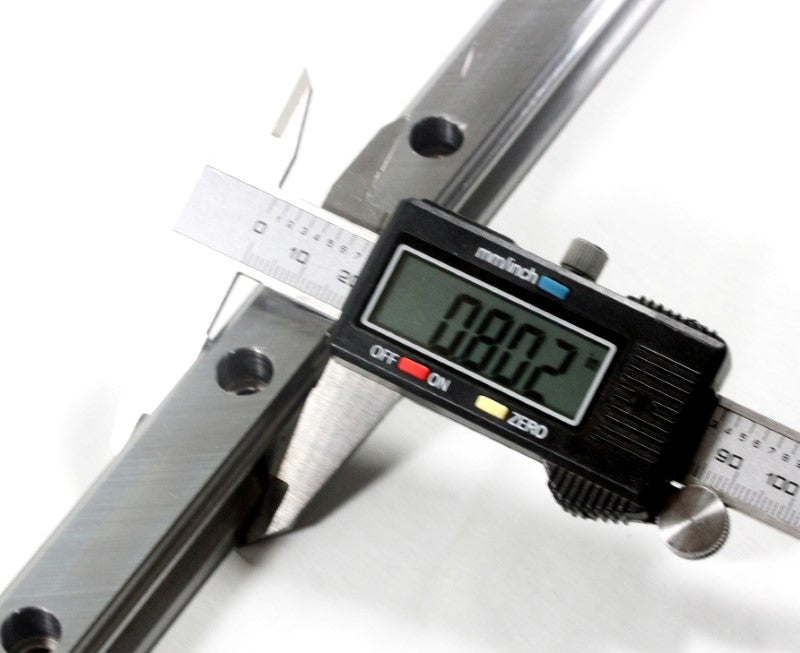

  • Measurement of HIWIN linear rails

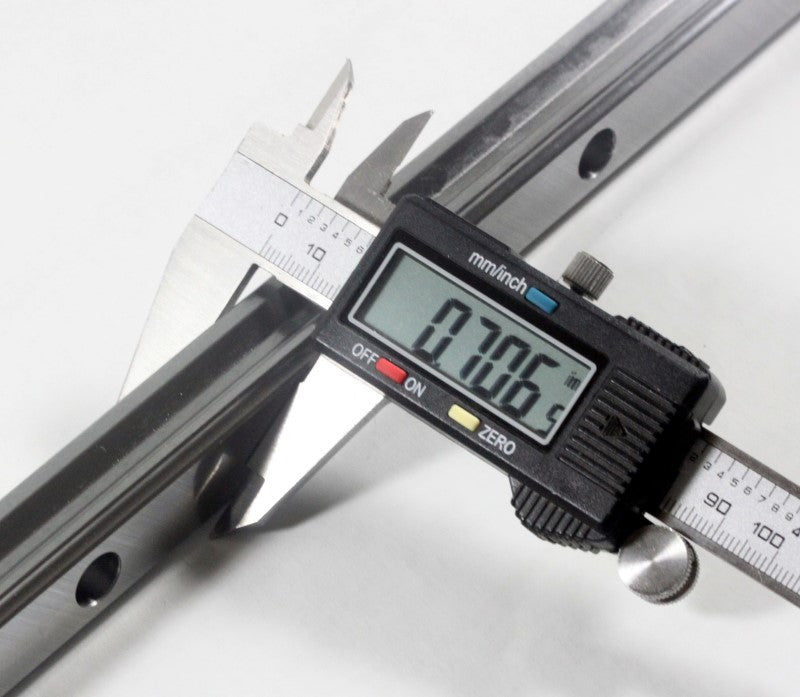

  • Measurement of HIWIN Linear rails

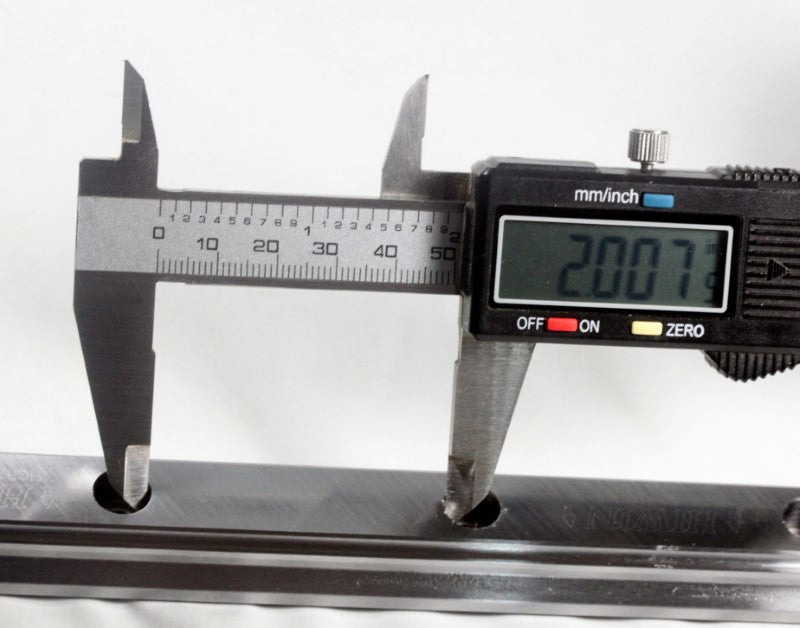

  • Measurement showing 2 inches of spacing between holes.
1 4

BuildYourCNC

HIWIN Spec Linear Guide Rail

HIWIN Spec Linear Guide Rail

$3.00 USD
$3.00 USD
Sale Sold out
Title
These rails conform to Hiwin specifications and are interchangeable with Hiwin manufactured rails. For the very best quality and precision for DIY CNC, order HIWIN Spec Linear Guide rail. Ships from USA. Full length or cut to order. Comes with 2 guide blocks when ordered in whole 1400mm sections. Custom cut lengths do not include guide blocks (order separately) .
Note: Maximum single length for 1 piece of HIWIN rail is 1400mm or 55.12 inches. The function of this rail is to provide a stable guide way that is extremely rigid and allows that axis of movement to maintain it's position across a linear space. The guide way eliminates or minimizes any sideways or up/down motion and only allows to linear motion. Generally, these HIWIN rails come as a designation of the width of the rail which in this case is 20mm. The mounting configuration is from the top. The top part of the rail is where the sharper points are located. Mount from the top screw going down. You can use a #8, #10, or M5 screw for mounting the rail. The measurement from the edge to the first hole is 10mm, if you have the uncut version. The dimension between each hole is 60mm. The thickness of the rail is 17.5mm. Ordering Info: add desired length in inches to cart (QTY 1 = 1") , if multiple lengths are needed, please contact us to let us know. These HIWIN linear rails are an industry standard when it comes to high quality, low noise, and superior accuracy. Price listed is per inch. These HIWIN rails pair with the These will pair with our HIWIN linear guide blocks. Specifications:
  • Rail: 1400mm guide length
  • Rail width: 20mm
  • Mounting bolt: M5x16
  • Mounting hole center to hole center: 60mm
  • Guide Block: Width of block: 63mm
  • Length of block: 77.5mm
  • Mounting holes distance in the width direction: 53mm
  • Mounting holes distance in the length direction: 40mm
  • Both: From bottom of rail to top of block: 30mm
  • From block bottom to bottom of rail (clearance): 4.6mm
View full details

Questions & Answers

Have a Question?

Ask a Question

  • if I order the aluminum rail seperately does it come pre-drilled with the the mounting holes?

    We can drill the holes for you. Just give us the desired measurement from hole to hole (on center). The drill size is 5/16" and the hole will be centered between the inside curve of the aluminum and the start of the curve at the edge.

  • I am trying to build a cutoff saw adjustable fence belt driven i need a linear rail 8 feet long it has a min. working load suggestions?

    Are you specifically asking for the axial load, or load on the mechanics which will drive the fence by the stepper/servo motor?

  • How do I specify multiple quantities of custom cut lengths of the linear bearing guide?

    Purchase the total length of the product that interests you (i.e. the linear bearing guide) and call us to inform us how you would like it cut. The phone number is located at the top right of each web page by hovering over the "Need Help?" message.

  • Do you sell the HIWIN rail sections without guide blocks?

    Yes, we sell rails with HIWIN specification. Our HIWIn spec rails are interchangeable with HIWIN brand rails. Here is the link for our per inch product page. https://www.buildyourcnc.com/item/mechanical-rails-HIWIN-Linear-20mm-Guide-Rail

  • Are the Hiwin rails in stock yet?

    For more information regarding this item please contact bycncmanufacturing@gmail.com. This answer will be erased when this item is in stock.

  • About your HIWIN rails. What Carriage block does the 78" rails come with, 2 flange or 2 with no flange?

    The HIWIN rails come with the same flange blocks that are sold individually.

  • Can I butt multiple rails end to end for a longer distance?

    Yes, you can abutt sections of this rail. You may need to grind the ends of each to make the motion from one rail to the other smooth. Make sure that the rail is aligned as straight and as close as possible as the bearing block is very tight and will bind if this is not aligned perfectly. Make sure there is no gap between the sections where ball bearing can escape.
