#40 Drive Sprocket

#40 Drive Sprocket

$16.95 USD
$16.95 USD
Sale Sold out
Title

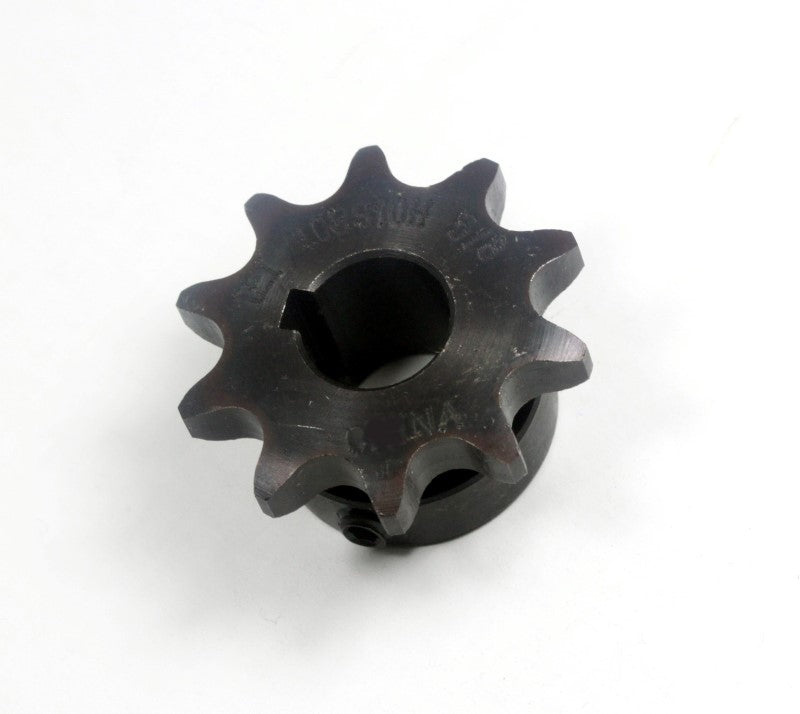

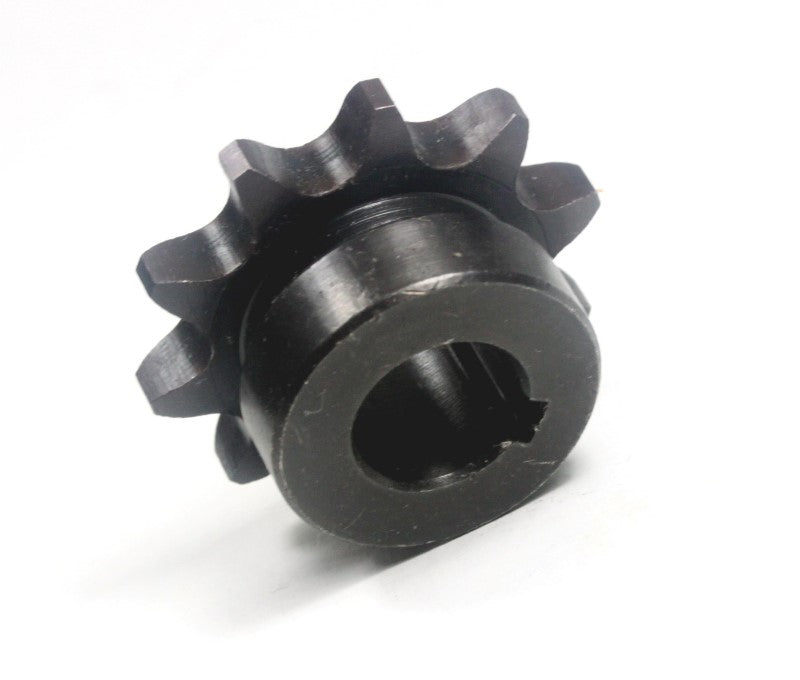

Notice the very large bore (hole) in the drive sprocket. That bore won't fit any motor generally used in the DIY CNC community, but accompanied with a collar that reduces the bore, now you have a great combination that fits well with 1/4" shafts.

View full details

Instructions

1
Step 1
Basic information on sprockets and roller chain. This video explains the uses of drive sprockets and idler sprocket and goes into some details of the geometry of the sprockets, how they work and various configuration that can be used with sprockets and roller chain. Information on calculating the steps per inch is also explained.

Questions & Answers

Have a Question?

Ask a Question

  • plans for building cnc

    We are not selling the plans at this moment. You can get the book authord by James Kelly and Patrick Hood-Daniel which is the same machines we sold plans for in the past. Here is the Amazon URL for the book: https://www.amazon.com/Build-Your-Machine-Technology-Action/dp/1430224894/ref=sr_1_4?ie=UTF8&qid=1483548108&sr=8-4&keywords=cnc+book Additional Information:

  • I would like some longer HIWIN rails and ballscrews for my x-axis, 9 feet or 108 inches. You list maximums as 78 inches.

    Yes, however, if you are needing a length of the HIWIN specification rail longer than our 78" max length, then you can abut more than one rail together to increase the length of the rail. We do this for our long X-Axis travels on our Fabricator pro machine.

  • How Do I buy linear rail 108" long

    We would need to order custom lengths of rail from our suppliers to fit this request. Currently our sizes are 55" for the linear guide rail.
