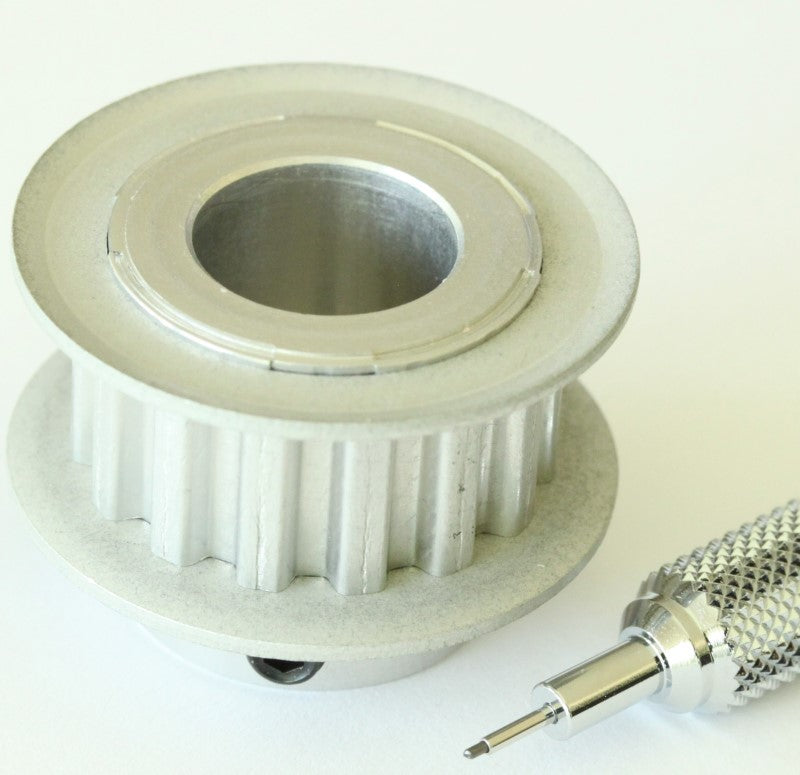

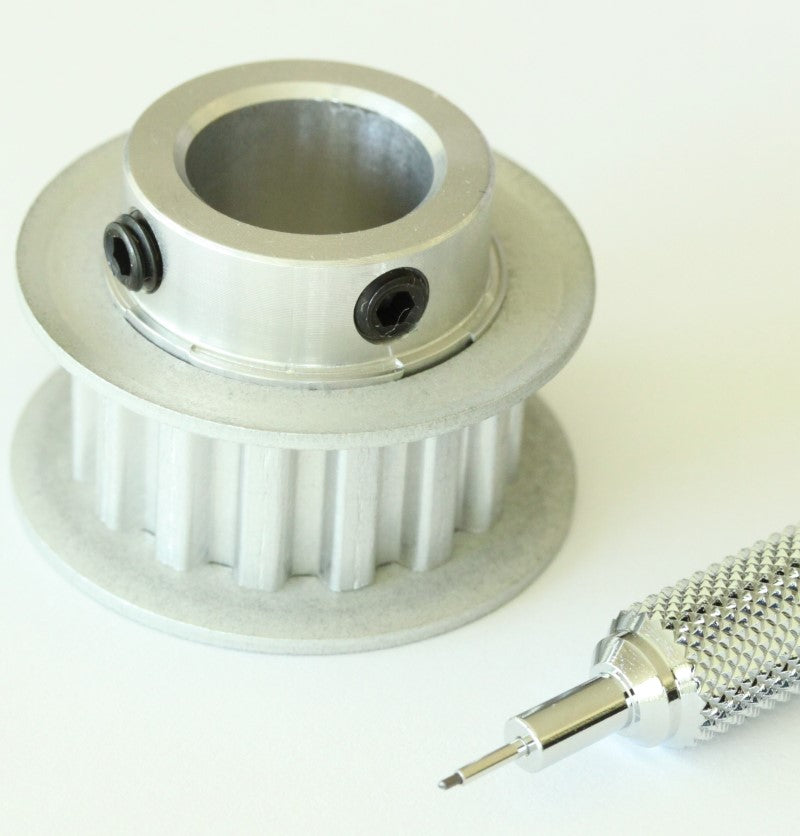

• XL 15 teeth drive pulley shown with mechanical pencil for scale
  • XL 15 teeth drive pulley 1/2" bore .2" pitch

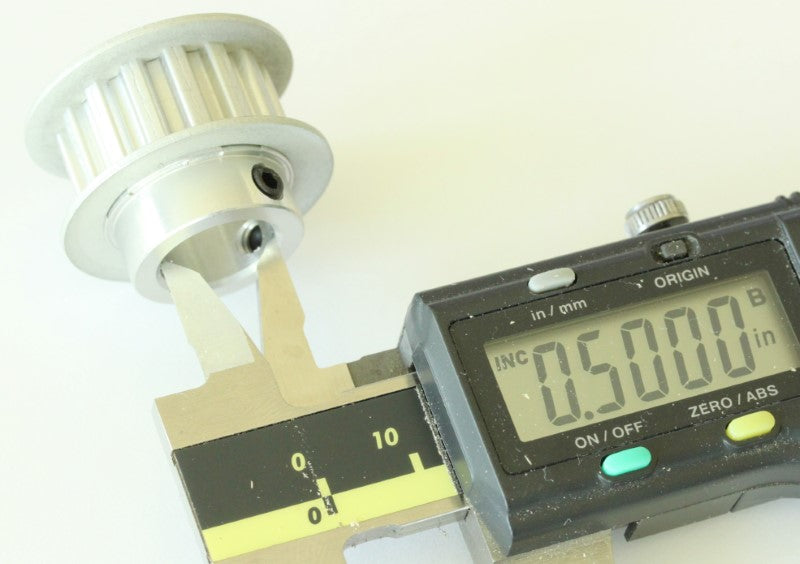

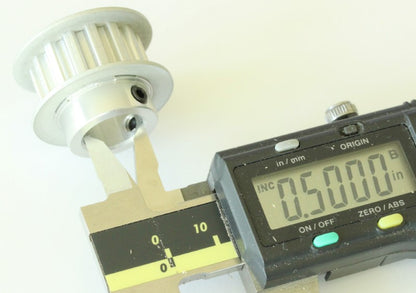

  • XL 15 teeth drive pulley 1/2" bore .2" pitch shown with caliper on the bore diameter. The measurement reads .5 inches.

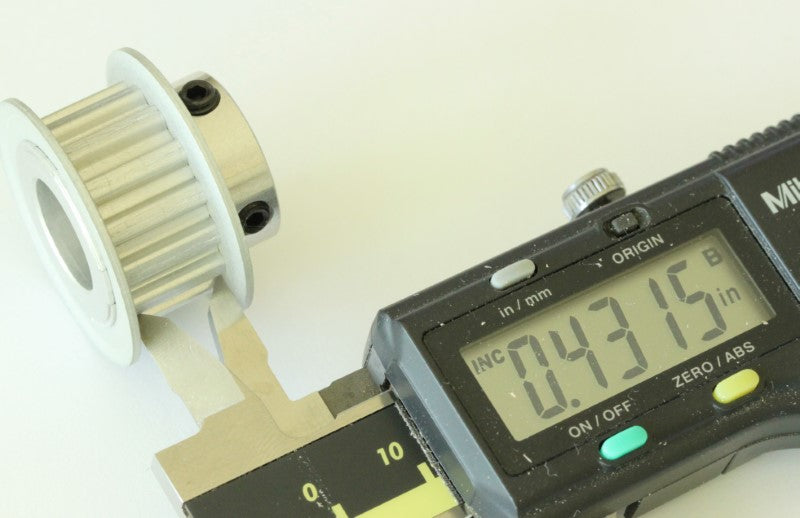

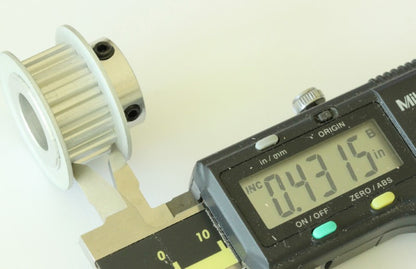

  • XL 15 teeth drive pulley 1/2" bore .2" pitch shown with caliper. Measurement reads .4315 inches.

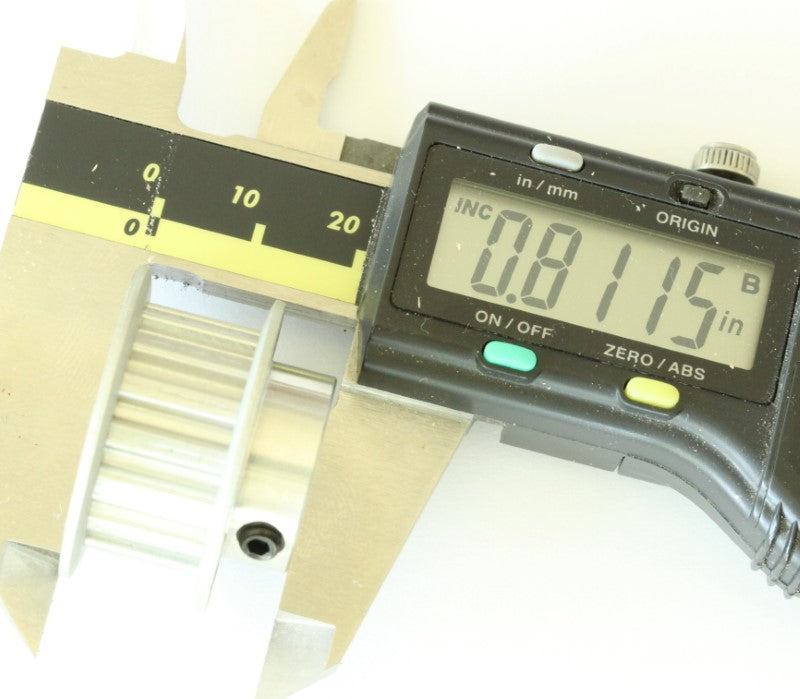

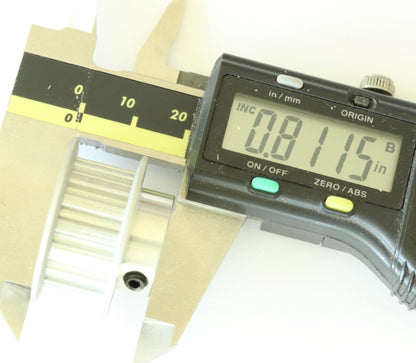

  • XL 15 teeth drive pulley 1/2" bore .2" pitch shown with a caliper. The measurement reads .8115 inches.
1 5

BuildYourCNC

XL 15 Teeth .2" Pitch Drive Pulley 1/2" Bore

XL 15 Teeth .2" Pitch Drive Pulley 1/2" Bore

$19.99 USD
$19.99 USD
Sale Sold out
Title
This is an XL size drive pulley with a .2" pitch and a 1/2" bore. Connect these directly to a 1/2" motor shaft and use a .375" timing belt.
  • Material: Aluminum Alloy
  • Pitch: .2" (XL)
  • Number of Teeth: 15
  • Flanges: 2
  • Bore Size: 1/2"
  • Outside Diameter: .935"
  • Overall Length: .813"
  • Pitch Diameter: .955"
  • Hub Diameter: 3/4"
  • Belt Width: .375"
  • Set Screw: M4 x 0.7 mm pitch
