M12 4-Pin Male Sensor Connector A Code (For Proximity, Limit and E-Stop Switches and Other Sensors)

The M12 4-Pin Male Sensor Connector A-Code is a standardized industrial connector commonly used for connecting sensors, actuators, and other devices in automation, robotics, and control systems. This connector is designed for reliability and durability in harsh industrial environments.

Key Features:

Gender:

• Male Connector: Features four protruding pins that mate with a corresponding female connector.

Number of Pins:

• 4 Pins: Arranged in a specific configuration according to the M12 A-coding standard.

Connector Type:

• M12 Connector: Circular connector with a 12 mm threaded locking mechanism for secure connections.

Coding:

• A-Code: Prevents mismating with connectors of different codings (like B, C, D, or X codes) by using unique keying.

Pin Configuration:

• Pin Arrangement: Pins are evenly spaced within the connector housing.
• Standard Pin Assignments (per IEC 61076-2-101):
  • Pin 1: +V (Positive Voltage Supply)
  • Pin 2: Signal/Data
  • Pin 3: 0 V (Ground)
  • Pin 4: Signal/Data

Material and Construction:

Housing:

• Material: Typically made from nickel-plated brass, stainless steel, or high-grade industrial plastics for robustness.
• Design: Circular with a threaded locking nut to ensure a secure and vibration-resistant connection.

Contacts:

• Material: Gold-plated brass or copper alloy for excellent electrical conductivity and corrosion resistance.
• Contact Resistance: Low to ensure reliable signal transmission.

Insulator:

• Material: High-quality insulating materials like PA (Polyamide) or PBT (Polybutylene Terephthalate) to maintain pin alignment and electrical isolation.

Environmental Protection:

IP Rating:

• IP67 or IP68: Dust-tight and protected against temporary or continuous immersion in water, depending on the specific model.

Sealing:

• O-Rings and Gaskets: Prevent ingress of moisture, dust, and other contaminants.

Temperature Range:

• Operating Temperatures: Typically from -25°C to +85°C, suitable for a wide range of industrial environments.

Electrical Specifications:

Voltage Rating:

• Typically 30V to 250V AC/DC, depending on the manufacturer and specific application.

Current Rating:

• Up to 4 A per Pin, allowing for the transmission of signals and low to moderate power levels.

Insulation Resistance:

• High Insulation Resistance: Often greater than 100 MΩ to prevent leakage currents.

Mechanical Specifications:

Mating Cycles:

• Durability: Rated for a high number of mating cycles (usually >100), ensuring longevity in applications requiring frequent connections and disconnections.

Locking Mechanism:

• Threaded Coupling: M12 x 1 threaded interface provides a secure and reliable connection that resists vibration.

Termination Options:

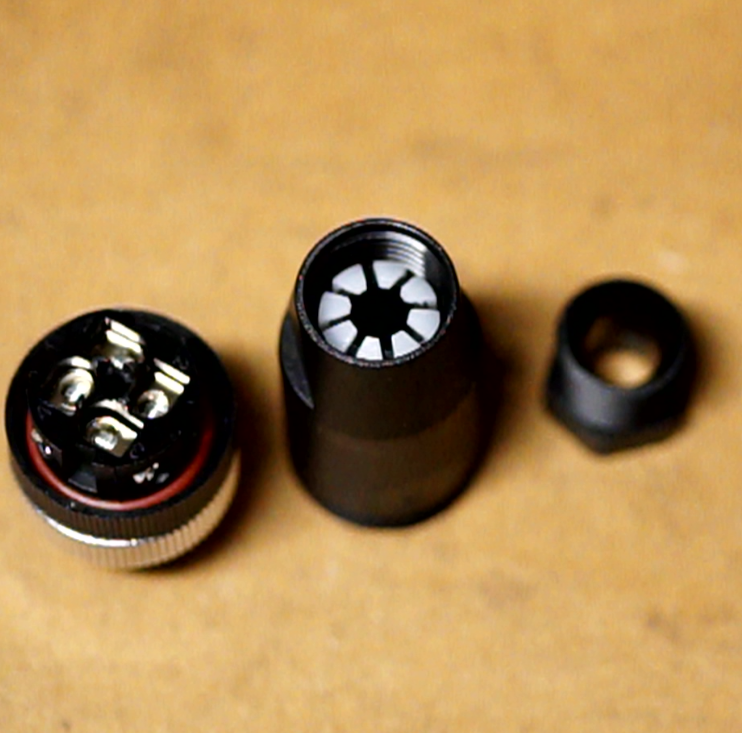

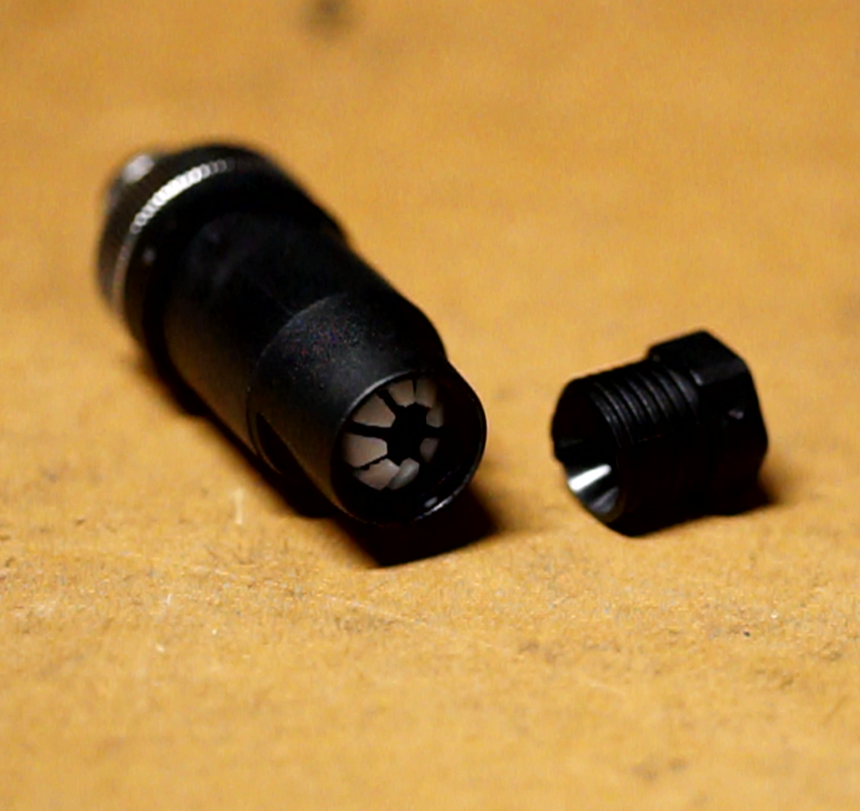

Cable Mount (Field Attachable):

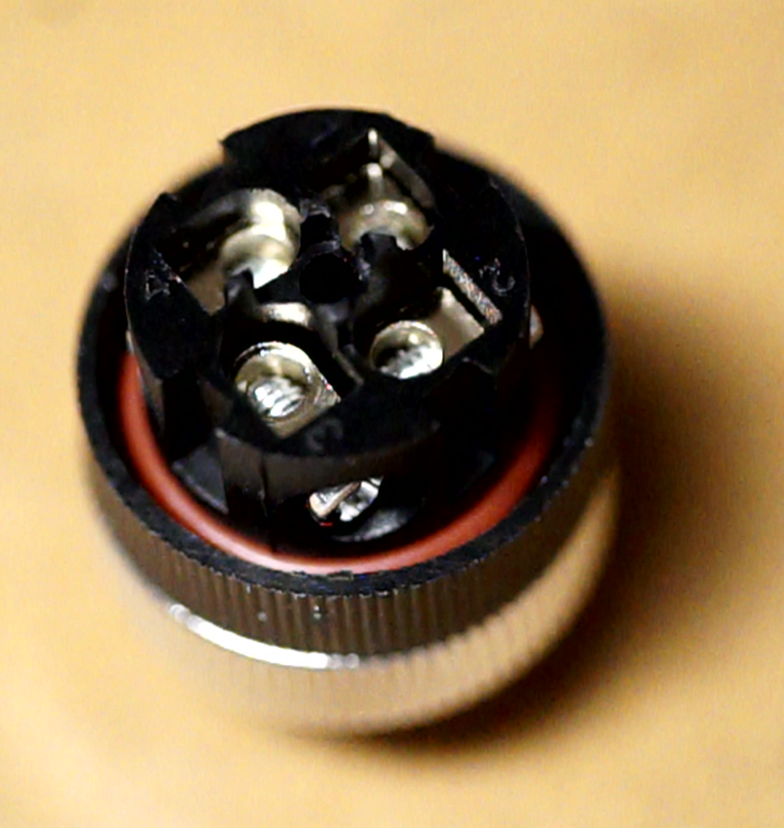

• Screw Termination: Allows for easy assembly without special tools.
• Solder Termination: Provides a secure connection but requires soldering equipment.
• Crimp Termination: Offers a reliable connection with appropriate crimping tools.

Panel Mount:

• Front or Rear Mounting: Facilitates integration into devices or enclosures.
• Solder Cup or PCB Pins: For direct connection to printed circuit boards.

Pre-Wired/Molded Cable Assemblies:

• Overmolded Connectors: Provide strain relief and additional protection.
• Cable Specifications: Available with various cable lengths, materials, and shielding options.

Optional Features:

Shielding:

• EMI/RFI Protection: Shielded versions are available to protect against electromagnetic and radio frequency interference.

LED Indicators:

• Integrated LEDs: Provide visual status of power or signal, useful for diagnostics.

Right-Angle or Straight Versions:

• Design Variants: Accommodate space constraints and specific installation requirements.

Standards and Compliance:

International Standards:

• IEC 61076-2-101: Compliant with international standards for M12 connectors.

Certifications:

• RoHS and REACH Compliance: Ensures materials are free from hazardous substances.

UL and CSA Listings:

• Safety Certifications: Some connectors may have additional safety certifications.

Applications:

Industrial Automation:

• Sensors and Actuators: Connection of proximity switches, photoelectric sensors, and other field devices.
• PLC and I/O Modules: Interface with programmable logic controllers and input/output modules.

Robotics:

• Servo Motors and Encoders: Reliable connections in robotic arms and automated machinery.

Transportation:

• Railway and Automotive Systems: Use in environments requiring robust and vibration-resistant connectors.

Process Control:

• Industrial Equipment: Integration into systems controlling temperature, pressure, and flow.

Installation and Usage:

• Easy Assembly: Designed for quick and secure connections in the field.
• Vibration Resistance: Threaded coupling ensures stability in high-vibration environments.
• Compact Design: Suitable for installations where space is limited.

Visual Description:

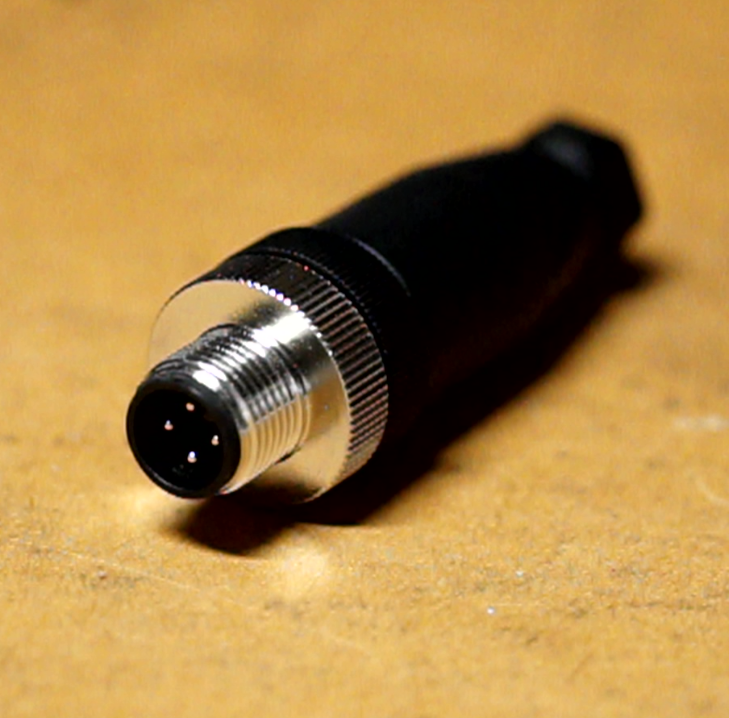

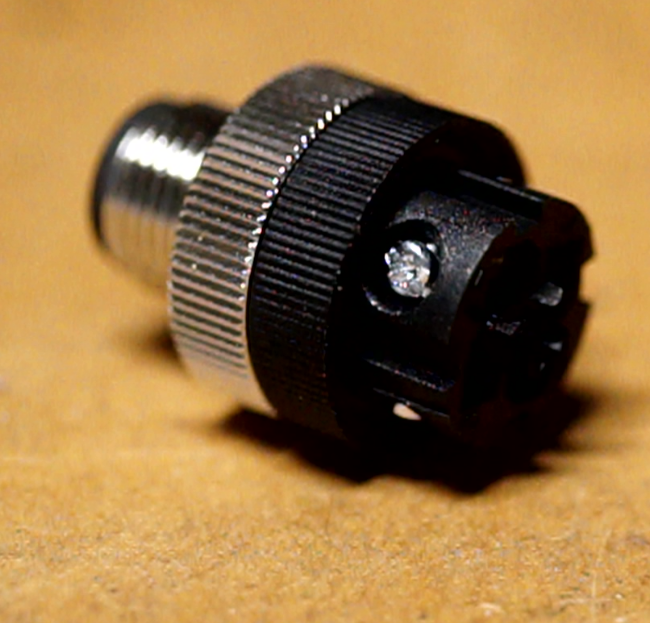

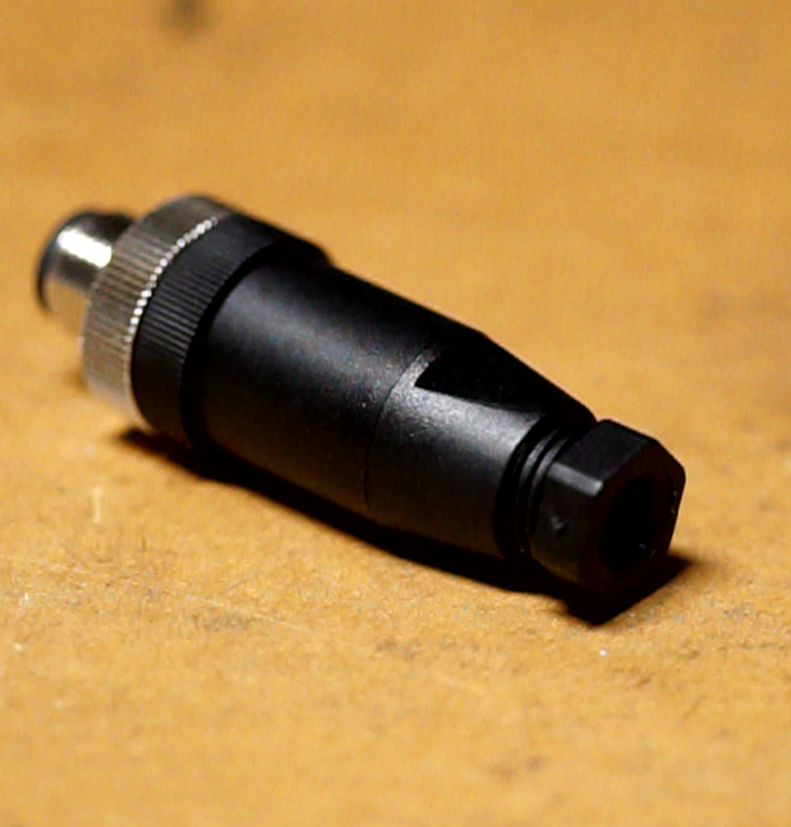

The connector has a circular, metallic housing with a threaded outer shell. The front face features four gold-plated male pins arranged according to the A-coding standard. The threaded locking mechanism surrounds the pins, allowing it to screw into a female M12 connector securely. The rear of the connector accommodates cable entry or mounts to a panel or device, depending on the configuration.

Maintenance and Care:

• Regular Inspection: Check for signs of wear, corrosion, or damage.
• Cleaning: Use appropriate contact cleaners to maintain optimal conductivity.
• Protective Caps: Use when connectors are not in use to prevent contamination.

The M12 4-Pin Male Sensor Connector A-Code is an essential component in modern industrial systems, offering reliable performance, ease of use, and compliance with international standards. Its robust design ensures consistent operation in demanding conditions, making it a preferred choice for engineers and technicians in various industries.
