1/4" x 3" Eyebolt with 1/4" Nut
1/4" x 3" Eyebolt with 1/4" Nut
Couldn't load pickup availability

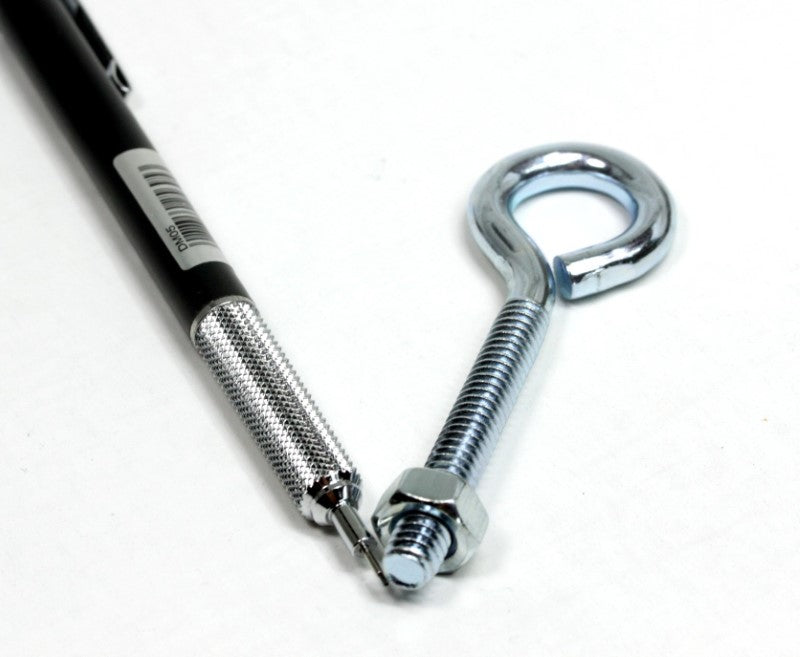

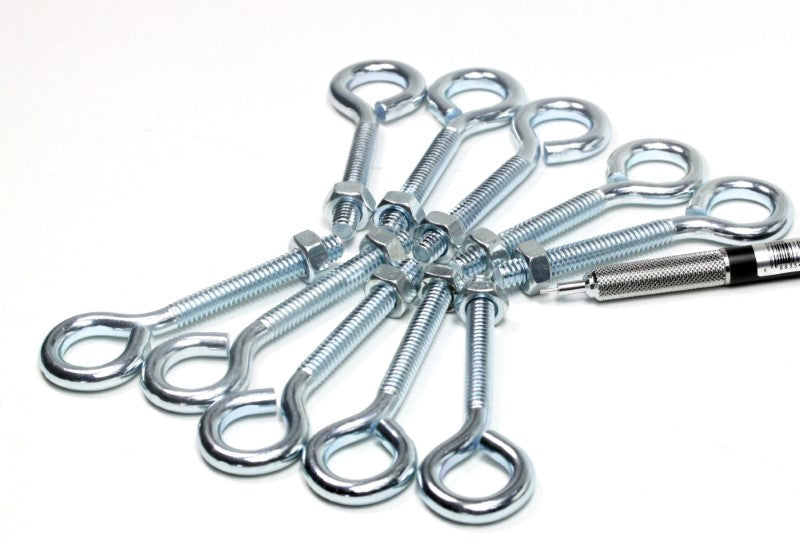

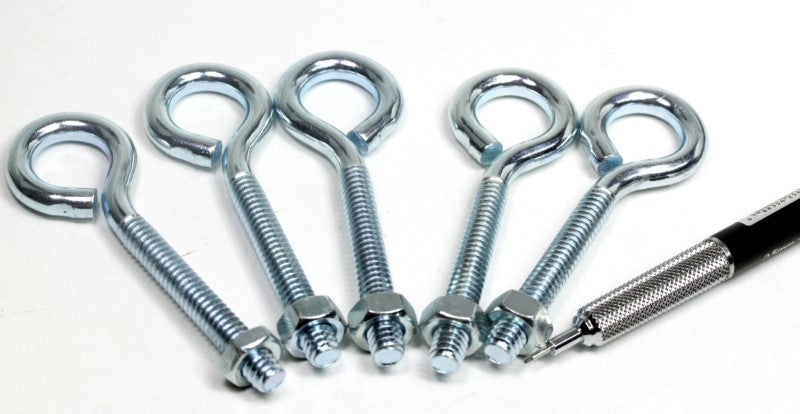

This is a 1/4" x 3" eyebolt that has a circular end to run wire rope, string , or in our case use roll chain for a CNC machine, The 1/4" x 3" is available in 1 , 5 , and 10 packs. Included with the 1/4" x 3" eyebolt is a 1/4" hex nut. The diameter of the eyebolt is 1/4". Total length of the eye bolt is 3 inches , and the length of the thread is 1 3/4" inches.
Share
Questions & Answers
Have a Question?
-
DO NEED TO SQUARE UP THE MACHINE AND IF SO YOU HAVE INSTRUCTIONS OR VIDEO FOR THIS?
The eyebolts are used in the squaring of the machine. I would use a standard carpenters square and first run the end mill along the edge of the square to first make it parallel with the long axis. Then run the end mill along the other edge with the short axis and adjust the eye bolts and chain according to the angle that the machine is out of square. Additional Information:
