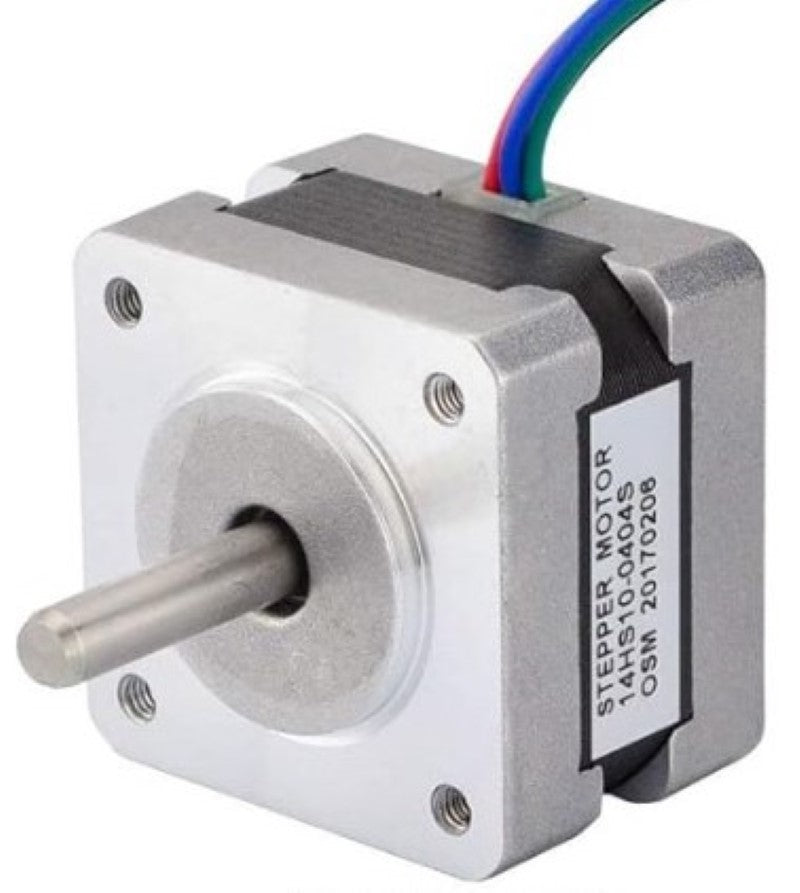

NEMA 14 Stepper Motor (17 oz-in 5mm shaft) 1.0 Amps

This NEMA 14 form factor stepper motor features 20 oz-in of holding torque in a frame smaller (36mm) than most. 5mm shaft, This miniature sized stepper motor may appear tiny, but still boasts a hefty 17 oz-in of holding torque. These NEMA 14 stepping motors can be utilized for a wide array of functions including but not limited to: smaller CNC machines, 3D printers and prototyping machines. Technical Specifications:

• 1.8 degree stepping angle
• Current/Phase: 0.4 A
• Holding Torque: 20 oz-in / 14 Ncm
• Number of Leads: 4
