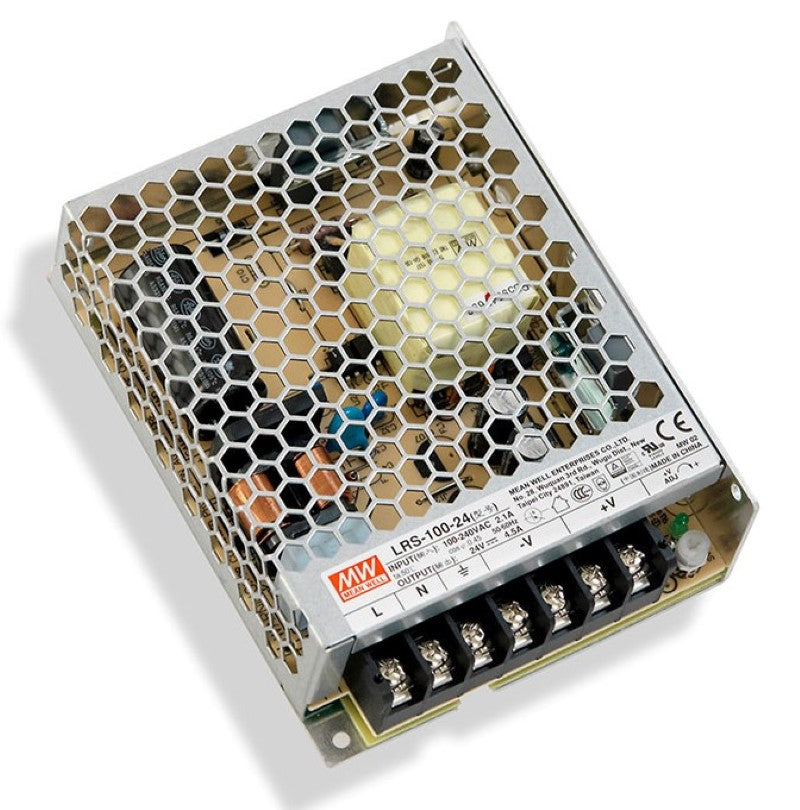

PoPower24-100 Power Supply

The PoPower24-100 is a high performance, cost effective 24V, 100W switching power supply. The power supply incorporates an advanced architecture to achieve an exceptional power density and efficiency. PoPower24-100 Downloads

High MTBF

Superior Reliability

High efficiency

Easier system cooling

-25 to +70°C operating temperature

Low derating above 50 °C (up to 70% load available at 70° C)

Improved system power optimasition

Curve B EMC

LED Power Indicator

Small Size: 159 mm X 97 mm X 38 mm

High MTBF

Input Voltage: 88- 264VAC

Input Frequency: 47-63 Hz

Output Voltage (adjustable): 22-27,2V

Max. Current: 4,5A

Load Reg.: 120mV

Line Reg.: 120mV

Ripple Noise: 120mV

Efficienty (max): 84%
