PoStep60-256 Stepper Driver

PoStep60-256 Stepper Driver

$64.99 USD
$64.99 USD
Sale Sold out
Title

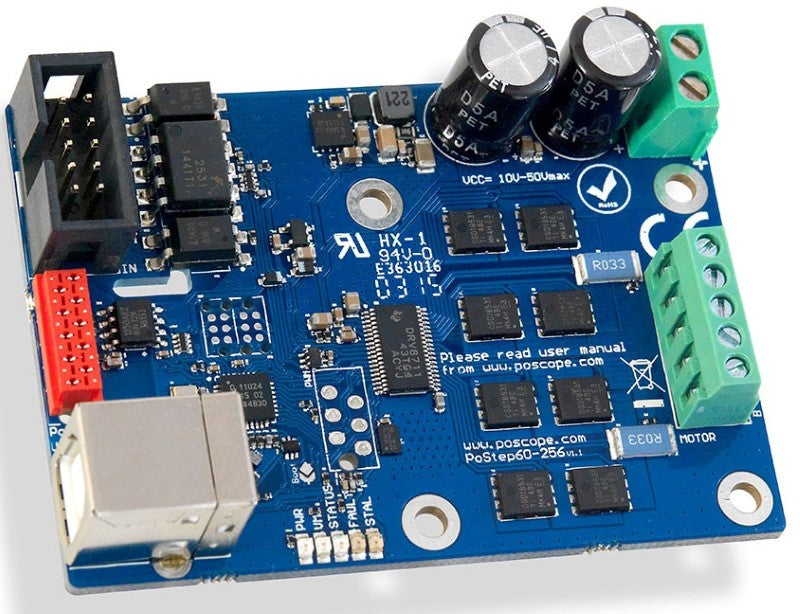

The PoStep60-256 is a stepper motor driver with 6.0 Amps Phase Current

PoStep60-256 Downloads & User Manual

  • up to 6.0 Amps Phase Current
  • Simple current, microstep and other settings with software via USB
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • +10 VDC to +50 VDC Power Supply
  • 1, 2, 4, 8, 16, 32, 64, 128 and 256 Micro-steps per Step
  • Mixed decay mode for smoother moving of motors
  • 3,3V and 5V logic compatible isolated inputs
  • 250 KHz Max Step Rate
  • 0 °C To 70 °C Operating Temperature
  • LED Power, VM, Status, Fault and Stal indicator
  • On board temperature sensor
  • Improved thermal managing
  • It can be driven from USB without controller
  • Small Size: 54 mm X 75 mm
    • View full details

    Questions & Answers

    Have a Question?

    Ask a Question

    • When clicking the manual link, it wont let me switch to the American version. How do I get that link?

      If you are referring to the polabs website that presents in another language, on that site, there is a button on the top right that says "options" with a down arrow. Click that and click turn off translation.
