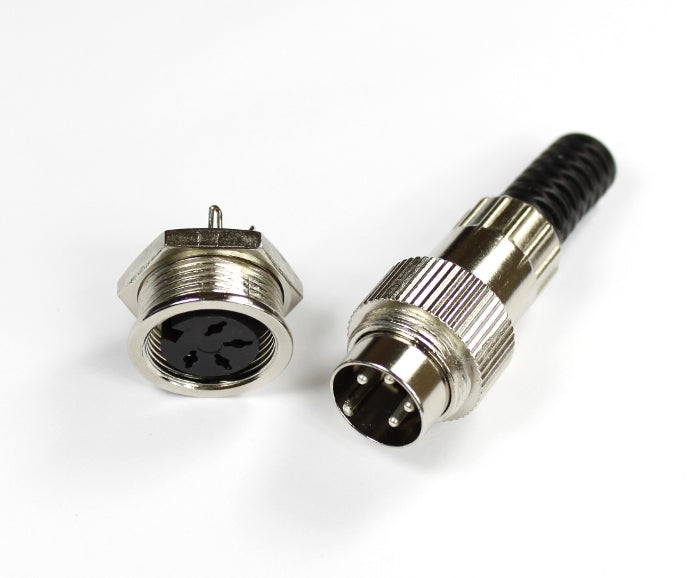

4 Pin Round Female and Male Connector Set

4 Pin Round Female and Male Connector Set

$13.98 USD
$13.98 USD
Sale Sold out
Title
These connectors are perfect for stepper motors and drivers. The female connector is fastened to a panel and can be wired to any device requiring 4 wires. The male connector is connected to the device outside of the electronics enclosure that needs to be connected to the female connector. 4 position circular terminal connector
Voltage rated: 100VAC
Current rating: 2A
Operating temp: -40°C ~ 85°C
Lead free ROHS compliant
Termination is solder
Fastening type is threaded
View full details

Questions & Answers

Have a Question?

Ask a Question

  • What are the physical dimensions of the 2.2kw VFD?

    On Monday, when I get back into the office, I will provide the dimensions for the 2.2kW spindle and I will also provide a drawing of these dimensions on the spindle 2.2kW page. Thanks. Additional Information: Spindle dimensional specifications: - Overall diameter is 80mm - The length of the outer housing is 200 mm - Diameter of the extension just below the spindle is 36mm and the length is 12mm - The Collet shaft diameter is 11.318 and the collet nut diameter is 16.75mm and both extend from the extension approximately 52.5 mm - The overall length is 264.5mm not including the air ports and the electrical connector (outer housing 200mm + extension 12mm + collet shaft and nut 52.5 mm). - The air ports extend 20 mm from the top of the spindle
