4 Pin Round Male Connector 12mm Panel End
4 Pin Round Male Connector 12mm Panel End
Regular price
$5.12 USD
Regular price
Sale price
$5.12 USD
Unit price
/
per
Couldn't load pickup availability
This connector mates with this male connector. These connectors are perfect for stepper motors and drivers. This connector would be fastened to a panel. The female connector can also be fastened to the male connectoras they both have mating threads. A set consisting of a male and female connector is also available. The panel to which this connector will be fastened cannot exceed a thickness of .239 inches (6.0706 mm) as shown in the image. In the image, the nut has only been turned with a couple of rotations when this measurement was made. The diameter of the hole on the panel must be at least .662 inches (16.8148 mm).
Share

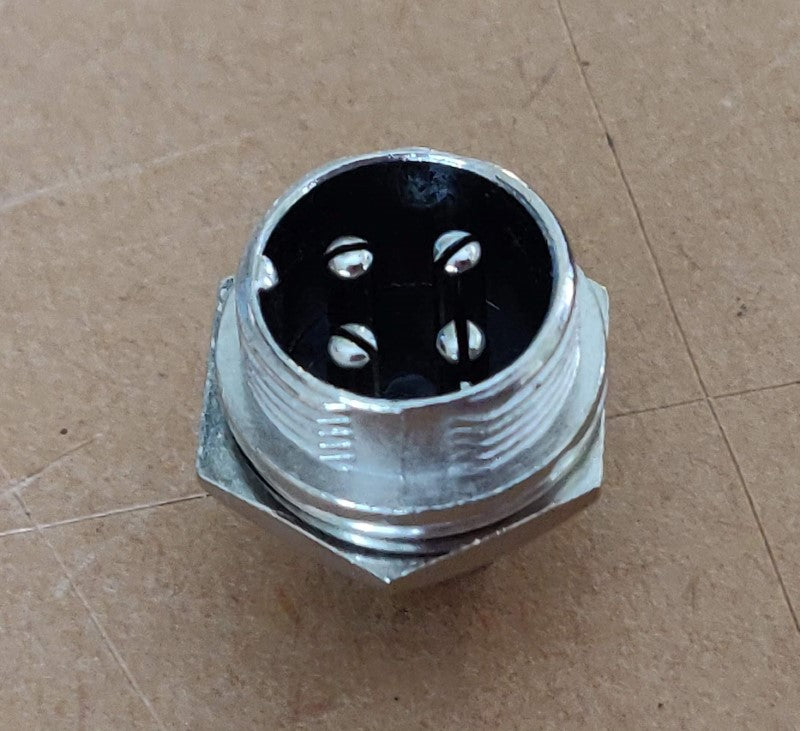

![round male panel end connector 12mm main image](http://newbiehack.com/cdn/shop/files/IMG_20190429_172001-800.jpg?v=1730087125&width=1445)

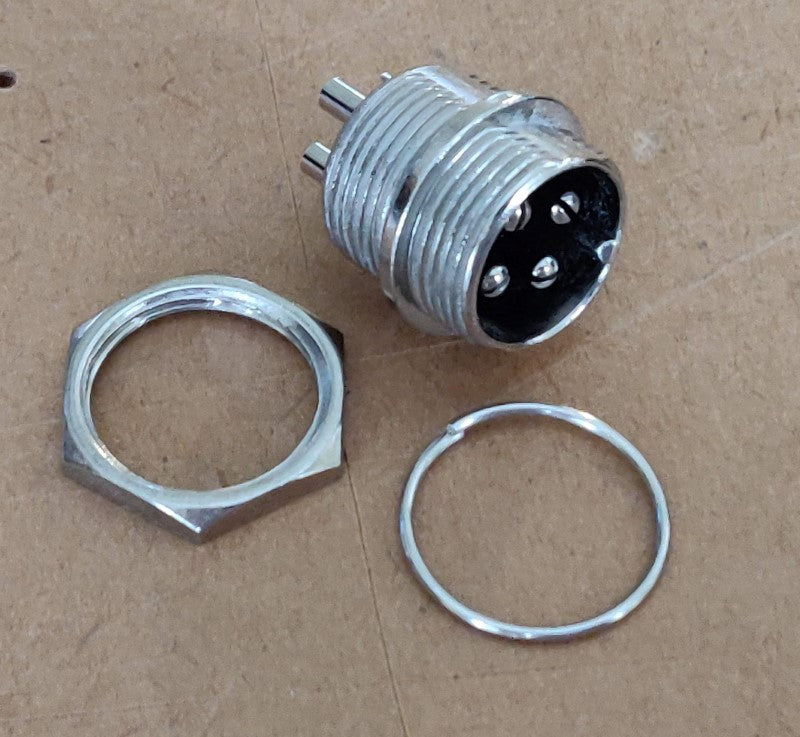

![round male panel end connector 12mm with the nut and washer removed](http://newbiehack.com/cdn/shop/files/IMG_20190429_172036-800.jpg?v=1730087125&width=1445)

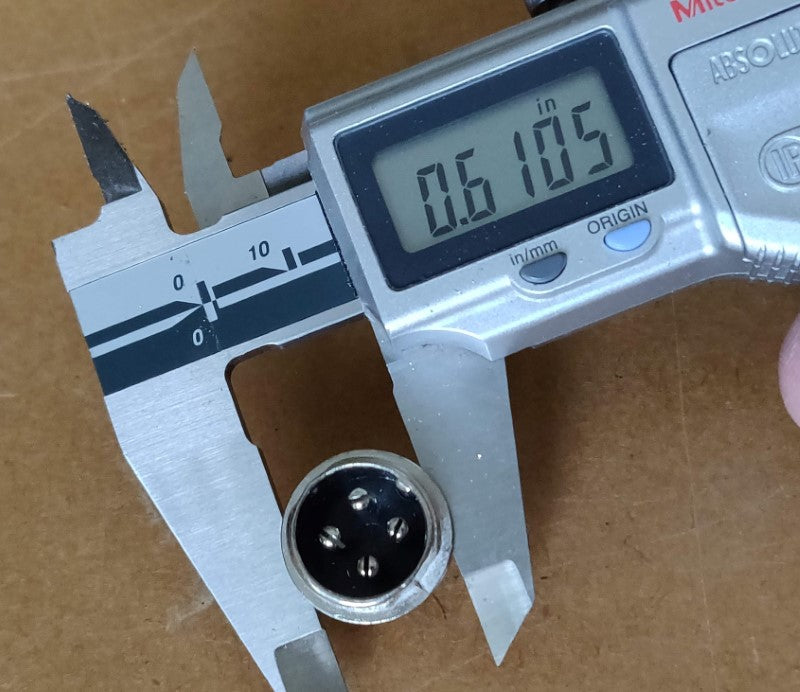

![round male panel end connector 12mm thread diameter of panel screw portion](http://newbiehack.com/cdn/shop/files/IMG_20190429_172201-800.jpg?v=1730087125&width=1445)

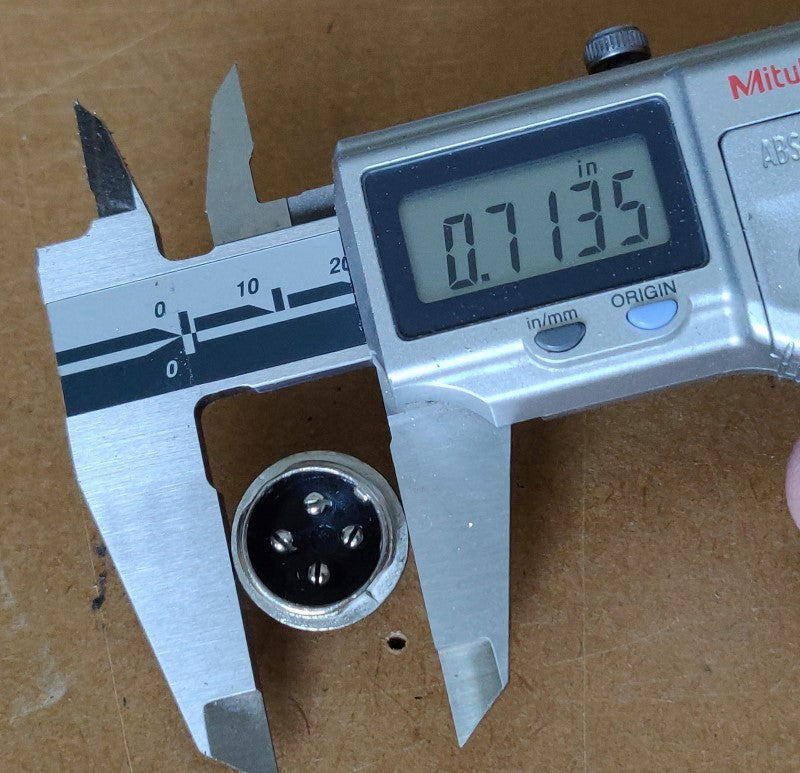

![round male panel end connector 12mm diameter of panel flange](http://newbiehack.com/cdn/shop/files/IMG_20190429_172211-800.jpg?v=1730087125&width=1445)

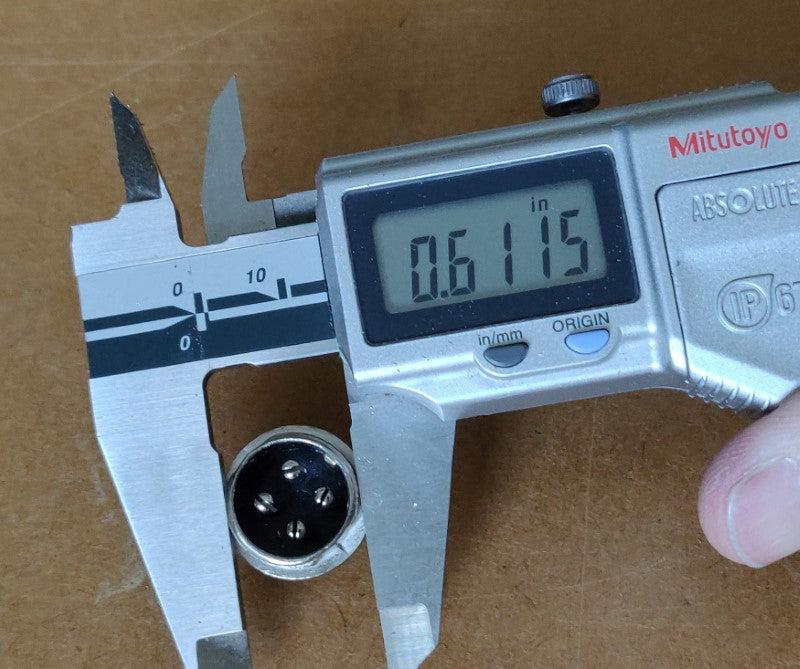

![round male panel end connector 12mm diameter of mating connector thread](http://newbiehack.com/cdn/shop/files/IMG_20190429_172218-800.jpg?v=1730087125&width=1445)

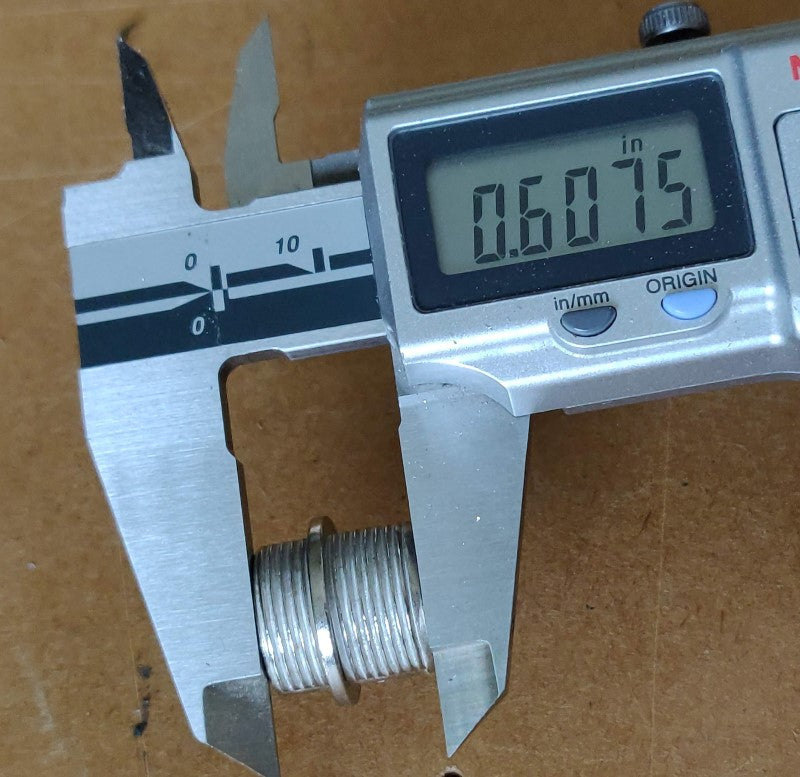

![round male panel end connector 12mm length](http://newbiehack.com/cdn/shop/files/IMG_20190429_172235-800.jpg?v=1730087126&width=1445)

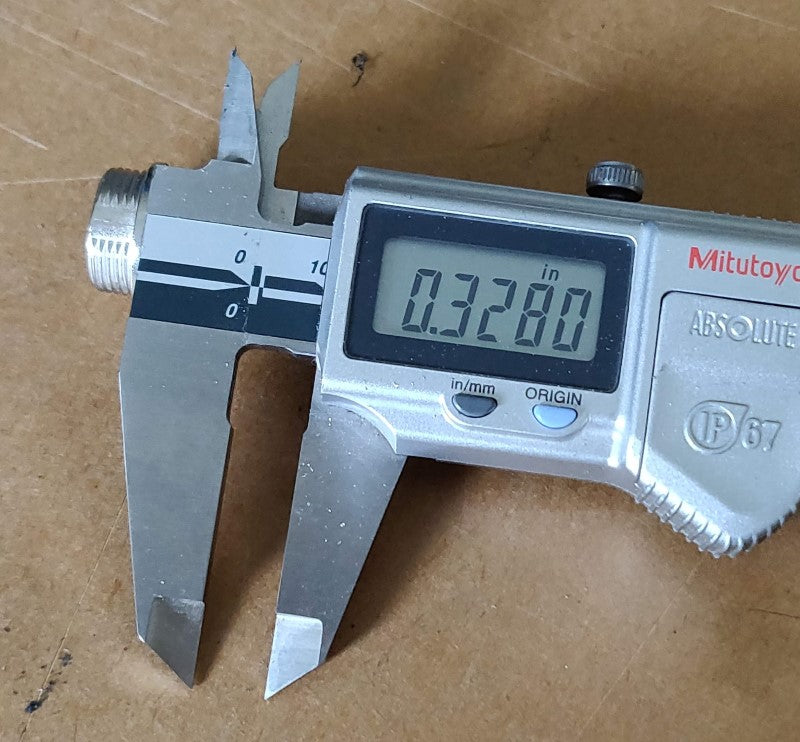

![round male panel end connector 12mm length of panel screw thread](http://newbiehack.com/cdn/shop/files/IMG_20190429_172349-800.jpg?v=1730087126&width=1445)

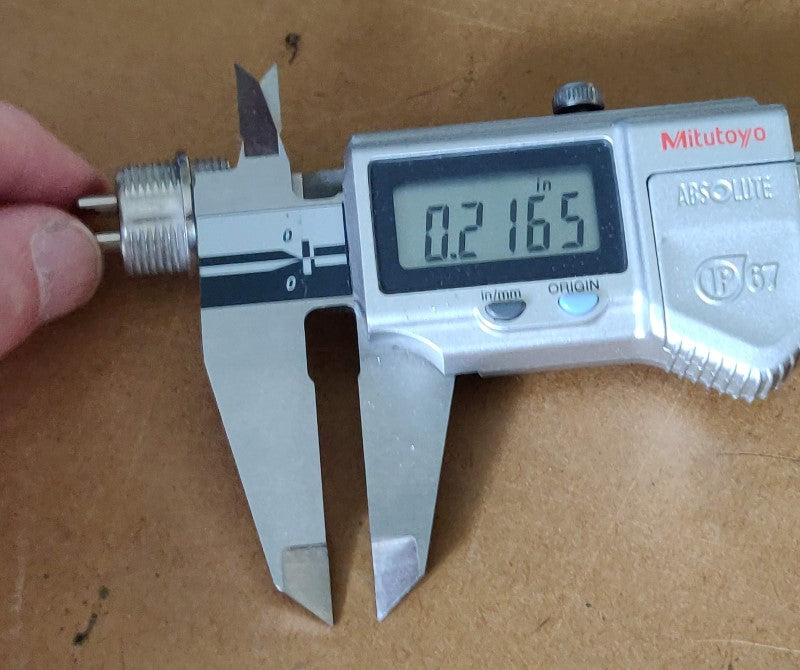

![round male panel end connector 12mm length of mating screw thread](http://newbiehack.com/cdn/shop/files/IMG_20190429_172421-800.jpg?v=1730087126&width=1445)

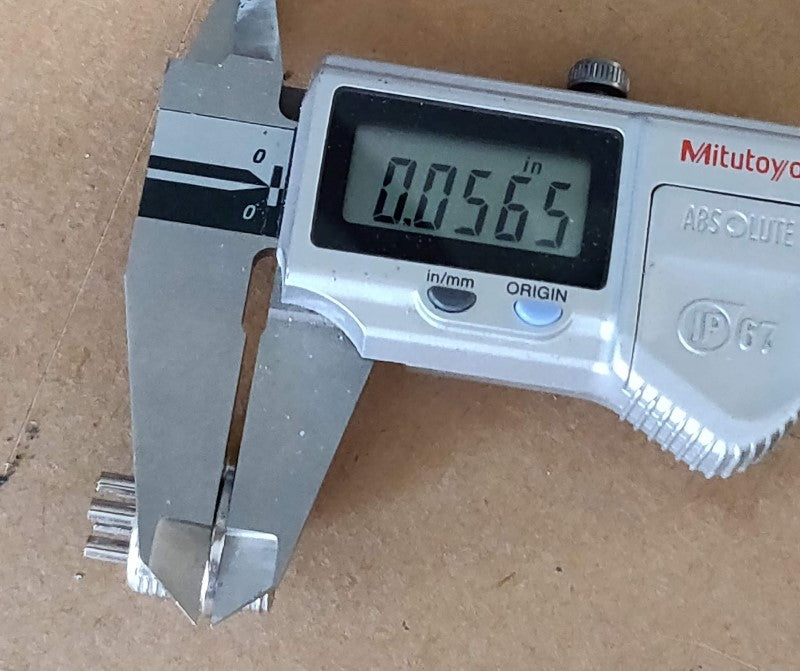

![round male panel end connector 12mm thickness of panel flange](http://newbiehack.com/cdn/shop/files/IMG_20190429_172438-800.jpg?v=1730087126&width=1445)
