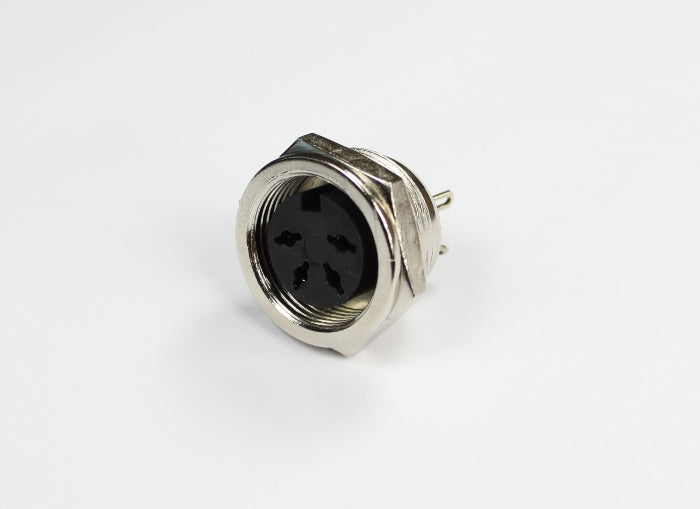

• 4 Pin Round Female Connector
  • thumbnail: 4 Pin Round Female Connector

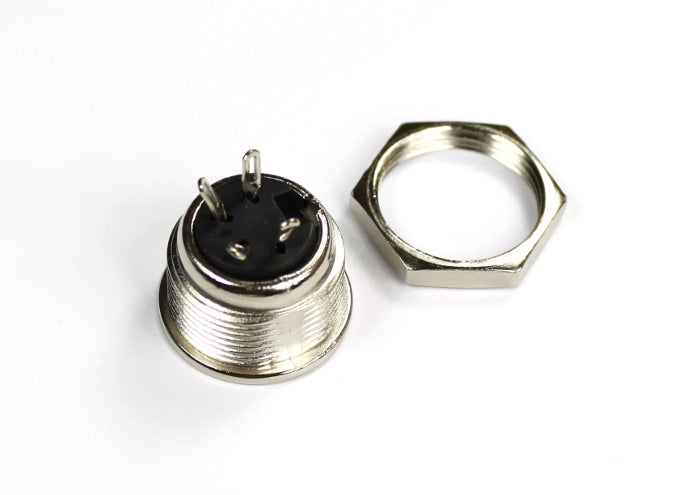

  • Back of Round 4 Pin Female Connector with Fastening Nut

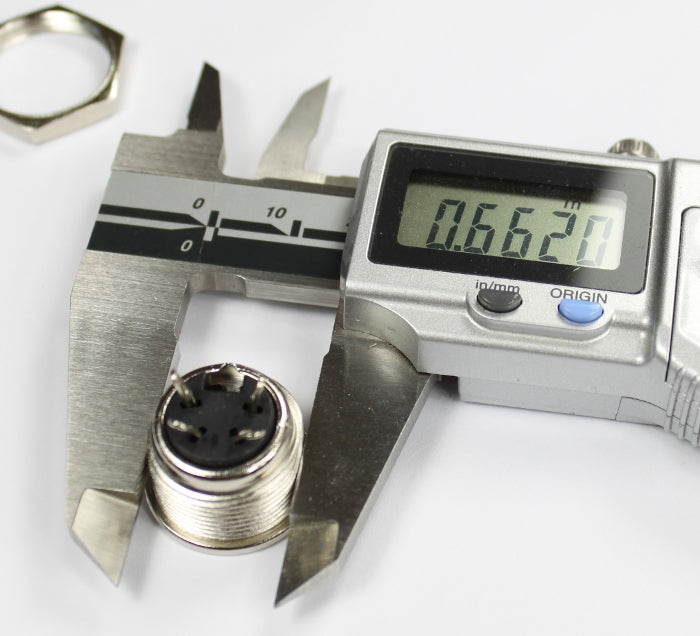

  • The Diameter of the Round 4 Pin Female Connector

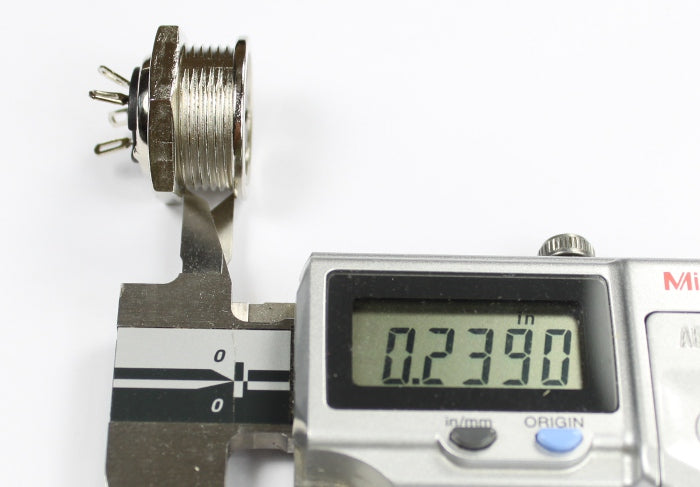

  • The Maximum Thickness that the Panel (Length of the Threaded Portion)
1 5

BuildYourCNC

4 Pin Round Female Connector

4 Pin Round Female Connector

$6.15 USD
$6.15 USD
Sale Sold out
Title
This connector mates with this male connector. These connectors are perfect for stepper motors and drivers. This connector would be fastened to a panel. The female connector can also be fastened to the male connectoras they both have mating threads. A set consisting of a male and female connector is also available. The panel to which this connector will be fastened cannot exceed a thickness of .239 inches (6.0706 mm) as shown in the image. In the image, the nut has only been turned with a couple of rotations when this measurement was made. The diameter of the hole on the panel must be at least .662 inches (16.8148 mm).
View full details

Questions & Answers

Have a Question?

Ask a Question

  • 4 Pin Round Female Connector - Hi, I wish to buy this but not sure how to connect this to a cable, please help

    The female connector (https://buildyourcnc.com/item/electronicsandmotors-connector-round-female-4pin) contains 4 terminals on the back of the connector to which the wires can easily be soldered.
