DIN Rail Support for C82R2 CNC Breakout Board

DIN Rail Support for C82R2 CNC Breakout Board

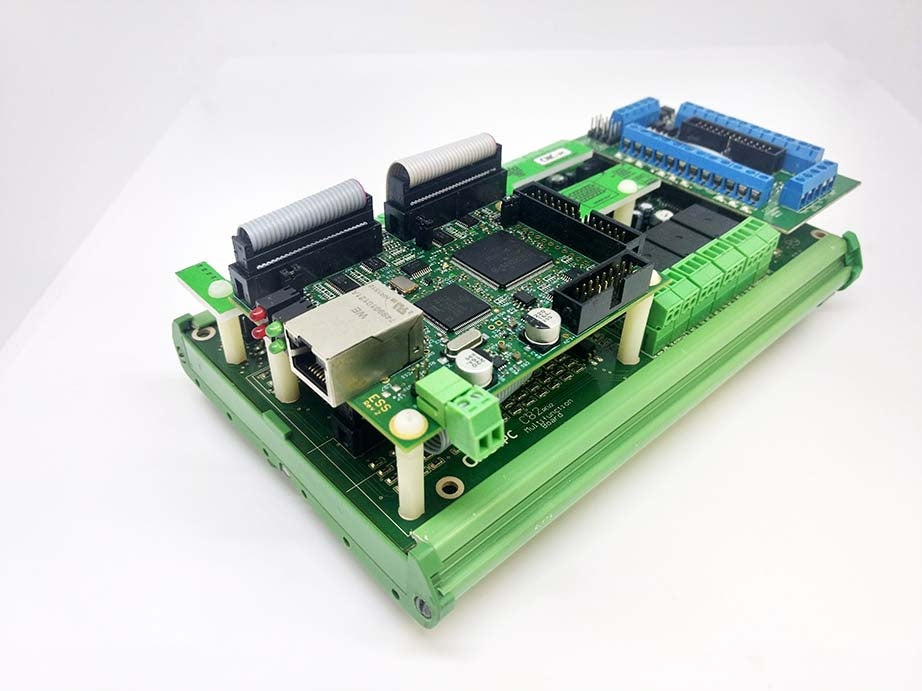

The DIN Rail Support for C82R2 is a mounting accessory designed to help install a CNC4PC C82/C82R2 breakout board cleanly inside a CNC control cabinet or electronics enclosure. It gives the board a more organized, serviceable mounting setup compared to loose panel mounting.

Why Use This DIN Rail Support?

• Cleaner control cabinet layout: Helps mount the C82R2 board neatly on a DIN rail instead of leaving the board loose or awkwardly mounted.
• Designed for the C82R2: Made as a dedicated DIN rail support accessory for the CNC4PC C82R2/C82 control board setup.
• Better service access: Keeps the control board positioned in a more organized way, making wiring, inspection, and future maintenance easier.
• Useful for CNC control enclosures: Ideal for CNC router, plasma, mill, lathe, and retrofit control cabinet builds using compatible CNC4PC electronics.
• Professional installation look: Helps make the inside of the cabinet look more intentional and easier to troubleshoot.

Important Compatibility Note

• This listing is for the DIN rail support accessory only.
• The C82/C82R2 breakout board shown in some photos is for fitment/example reference unless specifically included in your selected product option.
• Use this support when building or cleaning up a control cabinet that uses the CNC4PC C82/C82R2 board.

Best For

• CNC control cabinet builds
• C82/C82R2 breakout board installations
• Ethernet SmoothStepper-based control systems using compatible CNC4PC hardware
• DIY CNC router electronics enclosures
• CNC retrofit projects that need cleaner wiring organization
• Control panels where DIN rail mounting is preferred

Product Details

• Product type: DIN rail support / mounting accessory
• Compatible board: CNC4PC C82 / C82R2 breakout board
• Use case: Mounting the CNC control board inside an electrical enclosure or CNC control cabinet
• Application: CNC electronics organization, board support, and control cabinet layout improvement
• Board included: No, this is the support/mounting accessory only unless otherwise stated

Why This Matters in a CNC Build

A CNC control cabinet can quickly become difficult to work on if boards, power supplies, relays, and wiring are not mounted cleanly. A DIN rail layout keeps components more structured and easier to access.

• Helps reduce messy control cabinet layouts
• Makes future troubleshooting easier
• Supports a more professional CNC electronics installation
• Helps keep the C82R2 board positioned securely in the enclosure

Recommended Use

• Use this DIN rail support when installing a C82R2 board into a CNC control box or enclosure.
• Plan your cabinet layout before final wiring so the board, power supply, drives, relays, and terminals have enough clearance.
• Confirm compatibility with your exact C82/C82R2 board version before ordering.

What You Receive

• One DIN rail support accessory for the C82R2/C82 board
• A cleaner mounting solution for CNC electronics cabinet installations
• A practical upgrade for organizing CNC controller hardware
