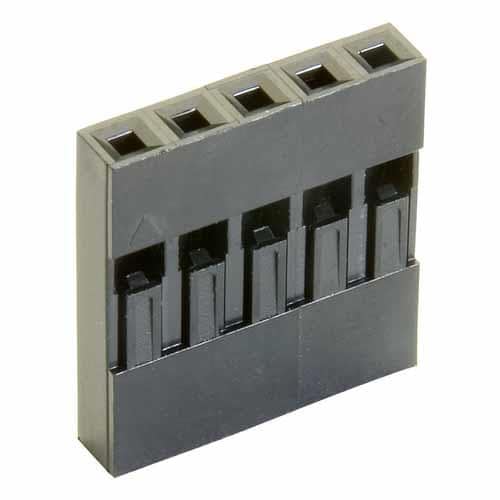

5-Position SIL Housing

A 5-position SIL housing is a precision-molded plastic connector designed to hold a single row of five crimp terminals, providing a reliable and standardized method for electrical connections in various electronic applications. These housings, typically manufactured from glass-filled polyamide (nylon) or similar engineering thermoplastics, offer robust environmental protection and secure terminal retention while maintaining precise pin spacing for reliable mating.

Key Specifications:

1. Physical Dimensions:

• Overall Length: ~12.7mm (for 5 positions @ 2.54mm pitch)
• Width: Typically 3.2mm - 4.5mm
• Height: 8mm - 11mm typical
• Pin Pitch: 2.54mm (0.1 inch) standard

2. Material Properties:

• Housing Material: PA66 (Nylon 6/6) typical
• UL94V-0 flame rating standard
• Operating Temperature: -40°C to +105°C
• Available in natural or black color
• Glass fiber reinforced for stability

Design Features:

1. Terminal Retention:

• Primary locking mechanism for crimp pins
• Audible/tactile click during insertion
• Secondary retention features
• Anti-backout design
• Terminal position assurance (TPA) in some variants

2. Polarization:

• Keying features prevent incorrect mating
• Visual orientation indicators
• Mechanical polarization ribs
• Cannot be inserted incorrectly into mating connector

Mechanical Characteristics:

1. Housing Strength:

• Terminal retention force: >30N typical
• Housing integrity maintained after multiple mating cycles
• Impact resistant design
• Resistant to insertion/extraction forces

2. Environmental Protection:

• Sealed or unsealed versions available
• Protection against dust and moisture
• Chemical resistance to cleaning solvents
• UV stability for outdoor applications
