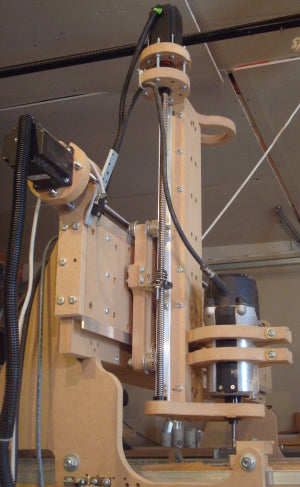

What number usually comes after 1.3? 1.4, right?!? Wrong, 2.0 of course. I have been working on the next obvious evolution for the CNC Machine kit that I offer here. Actually, I only started counting version numbers from 1.2 on to the 1.3. In this version, 2.0 seemed like the next logical step, and the machine wouldn't be complete without a name... blacktoe. The CNC Router is in the final steps of my testing and determining the jigs that I will use to fabricate these machines for sale (limited quantity during the introduction). This CNC machine will have many improvements over the version 1.3. Also, this CNC will serve as the foundation on which I will design other machine routing sizes. The routing area for my prototype is based on 44" on the Y-Axis and varying lengths on the X-Axis. The X-Axis travel will depend on the size and length of lead screw selected for the X-Axis. The kits that I will offer shortly will have a Y-Axis travel of the typical 48" and later I will design a CNC machine to route within the typical 2'x4'. The 2'x4' version will be much smaller than the existing 1.3 version. The first feature that you may have already noticed from the first image above is that the y-axis spans all the way to the table's edge. This is made possible by extending the rails past the gantry side. Also quite noticeable, I am using v-groove bearings that run along the edges of aluminum angles (6061). V-groove bearings were selected so that all of the assemblies are fastened closer together for better rigidity. The method of tightening the v-groove bearings to the aluminum angles are provided by short angled cuts in the MDF as seen on the gantry side. Not only has the rail system been improved, the entire gantry style and design is completely revamped. The gantry side is designed for maximum support and travel. Extra reinforcement is added in the back of the main span between gantry sides with two curved support pieces that add extra support in the middle of the span. It is of course necessary to have two lead screws for the X-Axis. In the second image, you will see the anti-backlash nut (also called wear compensating nut) attached very simply to the gantry side. In the video, you will see the new X-Axis lead screw mounts. These mounts are designed to be fastened anywhere along a table's edge. This way, the table can serve multiple purposes. why have a table this large only for a machine. It should be used for other purposes also, like a work table when you are not routing. I use my table for the CNC Router on one end and a computer table on the other. Versatility is key in this design. The third image shows the extra long length of the Z-Axis assembly. This is the length that I designed for the prototype only and not for the final kit. Z-axis travel will be approximately 5 to 6 inches. The hole on the far end of the top z-axis assembly piece holds the vacuum hose which leads down to another hole next to the router. Additionally, to the issue of dust, the bottom Z-Axis piece limits the high velocity of air being pushed out by the router and disperses it outward, not downward into the dust. This is so good that I don't even use the vacuum. Most of the dust is contained on the work piece and on the table which I clean up after routing.
Pricing: There are many variations and option that you can choose. Read carefully through all of the options to select the most appropriate components for your application. Included in these options are the base system (MDF and typical hardware and mechanical), lead screws/anti-backlash nuts (also called wear-compensating nuts), and electronics (4 axis only). You can purchase these components separately, or purchase a recommended system that contains the components for the fastest travel offered. Items that are not included in this system include router, software and computer. Software is depends on the CNC application (woodworking, PCB routing, metal working, user interface, etc). The router will also depend on the CNC application. I typically recommend the Porter Cable 2.25 hp model as I have had the most success with power and resilience.
Roller Chain Cased CNC Machine Kit:
Base Blacktoe Structure (2'x4' routing area)
$1635:
- Fabricated and prepared MDF for all of the machine support components (z-axis assembly, y-axis assembly, gantry and x-axis mounts.
- Hardware to fasten all of the MDF parts (screws, cross dowels, nuts) - See bottom of page for the exact parts and quantities totalling 636 pieces.
- Mechanical components (v-groove bearings and couplings)
- Roller chains, drive sprockets and idler sprockets.
- Aluminum angles with mating holes for fastening.
This option is for the customers that already have the electronics. (Depreciated) Base Roller Chain System with Motion Electronics
$2205: Base blacktoe Structure (MDF, Hardware, Typical Mechanical Components and Rails) 4-axis Electronics Package. (Depreciated)
Lead Screw Based CNC Machine Kit:
Base Blacktoe Structure (2'x4' routing area)
$1800:
- Fabricated and prepared MDF for all of the machine support components (z-axis assembly, y-axis assembly, gantry and x-axis mounts.
- Hardware to fasten all of the MDF parts (screws, cross dowels, nuts) - See bottom of page for the exact parts and quantities totalling 636 pieces.
- Mechanical components (v-groove bearings and couplings, lead screws, anti-backlash lead nuts, etc).
- Aluminum angles with mating holes for fastening.
This option is for the customers that already have the electronics. (Depreciated) Base Lead Screw System with Motion Electronics
$2375:
- Base Blacktoe Structure (MDF, Hardware, Typical Mechanical Components and Rails)
- 4-axis Electronics Package.
(Depreciated)
G-CODE:
blackToe 2'x4' routing area roller chain version 2.1 g-code files for the MDF pieces: $350 I am offering the .nc files due to overwhelming requests. These need to be run on a CNC machine. The price is factored by many aspects of the research and development of the blackToe machine and that this website survives by the sales of these machines. Remember that these files are licensed under the Creative Commons Attribution-Non Commercial. (Depreciated)
blackToe 2'x4' routing area lead screw version 2.0 g-code files for the MDF pieces: $300 I am offering the .nc files due to overwhelming requests. These need to be run on a CNC machine. The price is factored by many aspects of the research and development of the blackToe machine and that this website survives by the sales of these machines. Remember that these files are licensed under the Creative Commons Attribution-Non Commercial. (Depreciated) For the above g-code: Each board measures 2'x4' with a 1" clear border to maintain structure while routing. The origin for these layouts is positioned at the lower left corner while looking at the file on the screen. The z-axis is positioned where the tip of the end mill meets the surface of the material to enable easy cutting with a flat end 1/4" end mill, the depth per pass is set at 0.17".
