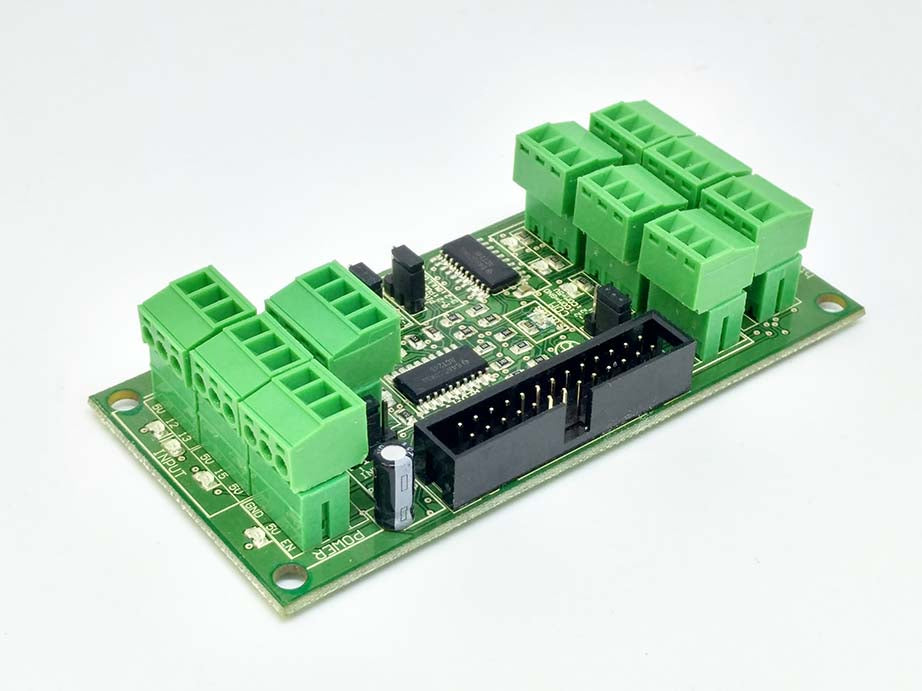

Bi-Directional Parallel Port CNC Interface Card with DIN Rail Mounting

Bi-Directional Parallel Port CNC Interface Card

This Bi-Directional Parallel Port Interface Card is designed to provide a clean, reliable way to connect CNC control signals between your PC or motion controller and your machine electronics. It uses the proven style of circuitry found in popular C10-style breakout boards, but adds a more control-box-friendly layout with DIN rail mounting, pluggable terminals, status LEDs, and flexible connection options.

If you are building or upgrading a CNC control box and need a stable parallel-port interface with buffered signals, this board gives you a more organized and professional wiring solution than a basic breakout board.

Why Choose This Interface Card?

• Clean control box installation: DIN rail mounting makes it easier to build a neat, serviceable CNC control cabinet.
• Bi-directional pins 2–9: Pins 2 through 9 can be configured for different input/output needs depending on your setup.
• Buffered inputs and outputs: Helps provide stronger, more stable signal handling between the controller and connected CNC electronics.
• Flexible input configuration: Pull-up or pull-down selection lets you match the board to your switch and wiring setup.
• Easy wiring: Pluggable screw terminals make connections cleaner and easier to service.
• Status LEDs: Built-in LEDs on inputs, outputs, and enable status make troubleshooting much easier.
• Multiple connection options: Designed to accommodate ribbon cable or DB25-style parallel port connections.
• External enable input: Allows the board to be enabled or disabled through a PC, motion controller, or control circuit.

Main Features

• IEEE 1284 standard compatible
• Pull-up or pull-down input selection
• Buffered inputs and outputs
• Bi-directional pins 2 through 9
• TTL 5VDC signal logic
• Input and output pins located near ground or +5VDC connections
• External enable pin
• Enable/disable control through the PC or motion controller
• Status LEDs for enable, inputs, and outputs
• Pluggable screw-on terminals
• DIN rail mountable design
• Works directly with popular CNC hardware and software setups

Input / Output Configuration

Customer-Friendly Explanation

This board acts as the connection point between your CNC control system and the machine electronics. It helps route signals from your PC or motion controller to drivers, switches, relays, and other CNC devices while keeping the wiring cleaner and easier to troubleshoot.

Compared with a basic parallel port breakout board, this version is better suited for control cabinet builds because it includes DIN rail mounting, pluggable terminals, status LEDs, and flexible input/output configuration.

Common Uses

• CNC router control boxes
• CNC mill control systems
• CNC plasma table wiring
• Mach3-style parallel port setups
• Machine retrofits using parallel port signal wiring
• Limit switch and home switch wiring
• Stepper or servo driver signal connections
• General CNC input/output signal routing

Compatibility Notes

• This board is not a standalone motion controller.
• It is an interface/breakout board used with a compatible PC parallel port or CNC motion controller.
• Uses TTL 5VDC signals.
• Confirm compatibility with your CNC software, controller, drivers, switches, and wiring setup before ordering.
• For modern computers without a true parallel port, a compatible external motion controller may be required.
