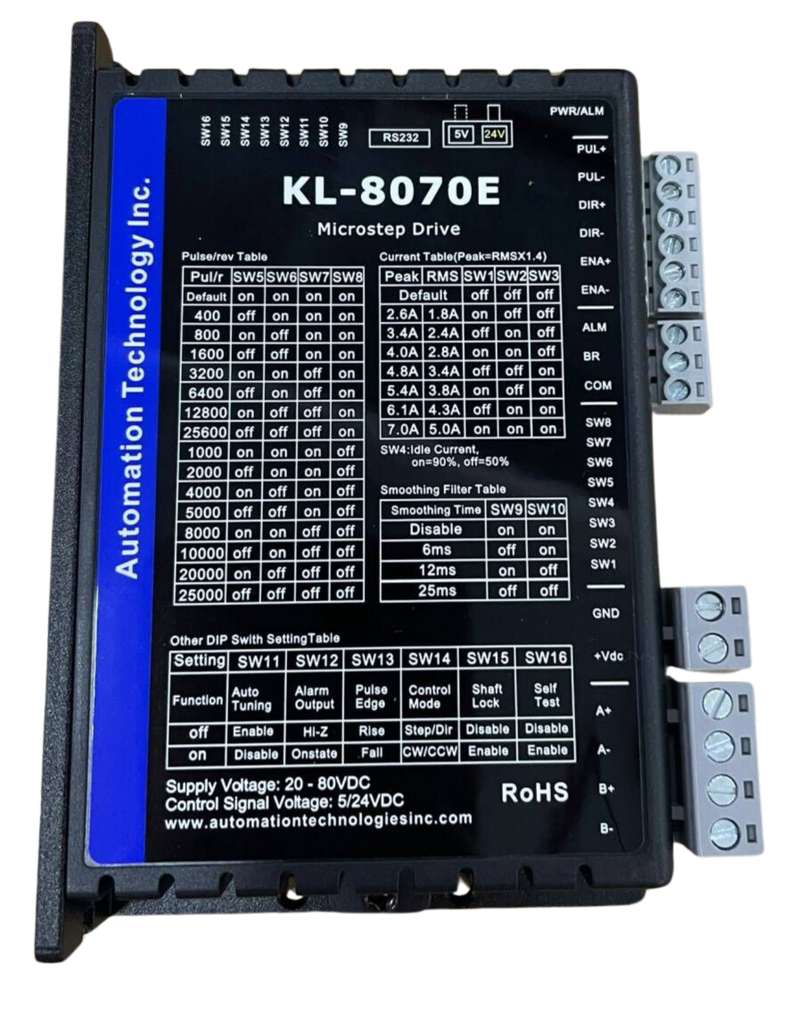

8070E Digital Bipolar Stepper Motor Driver with 32-Bit DSP, 7.0A Output, and Up to 51,200 Steps/Rev

The 8070E is an industrial-grade, digital bipolar stepper motor driver engineered for high-torque applications that demand smooth motion and precise control. Utilizing a 32-bit DSP-based control algorithm, the 8070E significantly outperforms traditional analog drivers by actively suppressing motor resonance and vibration, resulting in quieter operation and more stable mid-range torque.

Advanced Motion Control & DSP Technology
This driver features sophisticated anti-resonance control and motor auto-identification technology. Upon power-up, the 8070E can auto-configure its internal parameters to match the specific electrical characteristics of your motor, optimizing performance across a wide range of NEMA 23, 34, and 42 stepper motors. Additionally, its multi-stepping capability allows the driver to take a low-resolution step input and internally interpolate it into a high-resolution microstep output, ensuring fluid motion even at low speeds without taxing your CNC controller's pulse frequency limits.

Versatile Power & Configuration
The 8070E is built to handle demanding loads with a broad supply voltage range of up to 72 VDC and a programmable output current from 0.5A to 7.0A (Peak). Configuration is streamlined via an onboard DIP switch bank, allowing for rapid adjustment of:

Microstep Resolution: Selectable from full-step up to 51,200 steps per revolution for extreme positioning accuracy.

Current Settings: Precise amperage control to match your motor's rated current.

Idle Current: Selectable full or half-current reduction at standstill to minimize motor heating.

Industrial Reliability & Protection
Designed for the rigors of automated production, the 8070E features a rugged integrated heat sink and TTL-compatible, optically isolated inputs. This isolation protects your sensitive control electronics from high-voltage spikes and electromagnetic interference. The driver supports both PUL/DIR and CW/CCW control modes with a pulse input frequency of up to 200 kHz. To ensure long-term hardware safety, the unit includes built-in protection circuits for over-voltage, over-current, and phase errors, instantly halting operation if a wiring fault or power surge occurs.

Technical Specifications & Connectivity
The 8070E is a universal solution for 2-phase and 4-phase bipolar stepper motors. It operates on a high-voltage DC bus for improved high-speed torque and utilizes high-speed optical couplers for its signal inputs. The physical layout is optimized for control cabinet mounting, with clearly labeled terminals for motor phases (A+/A- and B+/B-), DC power input, and signal logic. Its 32-bit digital architecture ensures that even at high speeds, the step-response remains linear and predictable, making it a premier choice for CNC routers, milling machines, and precision labeling equipment.

Critical Installation Note for Upgrades
Verify Your Wiring: If you are using the 8070E to replace an 8060E, 8060, or any other legacy driver, do not assume the terminal assignments are identical. Always cross-reference your motor’s phase wires with the 8070E pinout diagram before applying power. Incorrect wiring is the primary cause of driver and motor damage during hardware upgrades.

Why Choose the 8070E?
When your project moves beyond basic hobby-grade requirements, the 8070E provides the industrial "muscle" and digital intelligence needed for professional results. By eliminating the resonance "dead zones" common in cheaper drivers, the 8070E ensures your machine maintains its accuracy and torque throughout its entire speed range.
