The Vertical Laser XL is a serious laser machine designed for large-scale laser engraving and cutting. These **digital plans** provide everything you need to build this incredible machine, tailored for a massive 4' x 8' (approximately 1200mm x 2400mm) cutting area.
Delivery: You will be able to download immediately after purchasing.
Video:Introduction To The Vertical Laser XL
The Digital Plans Include:

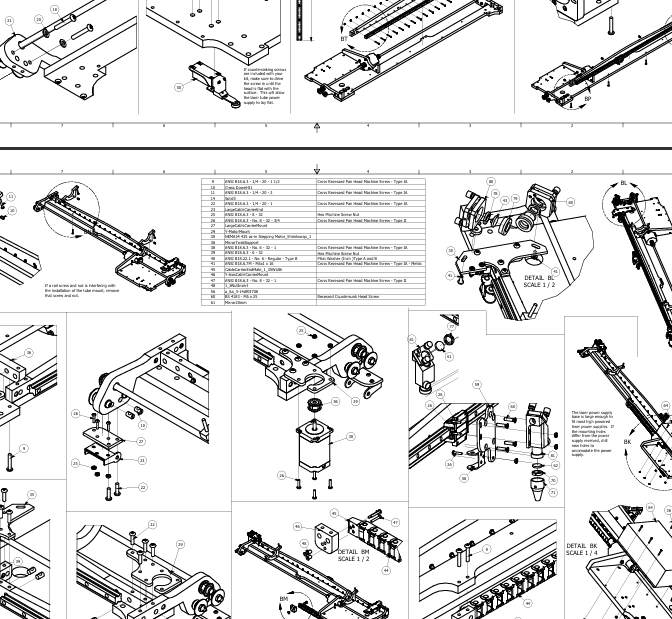

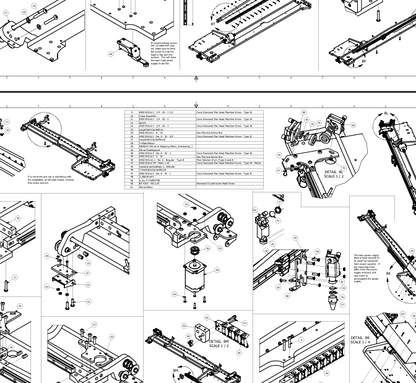

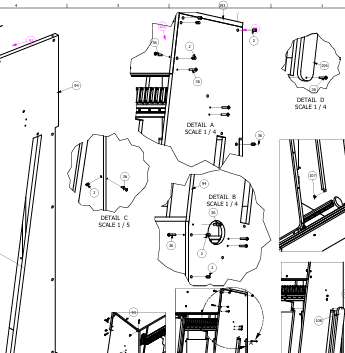

**72 jam-packed pages**, each measuring 36x24 inches

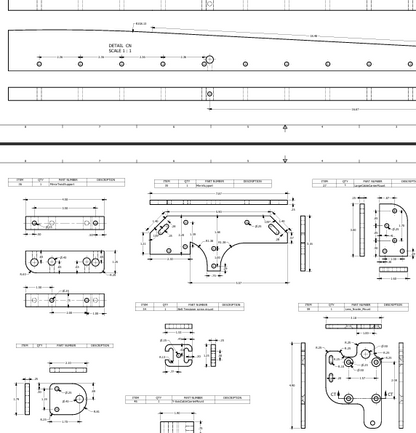

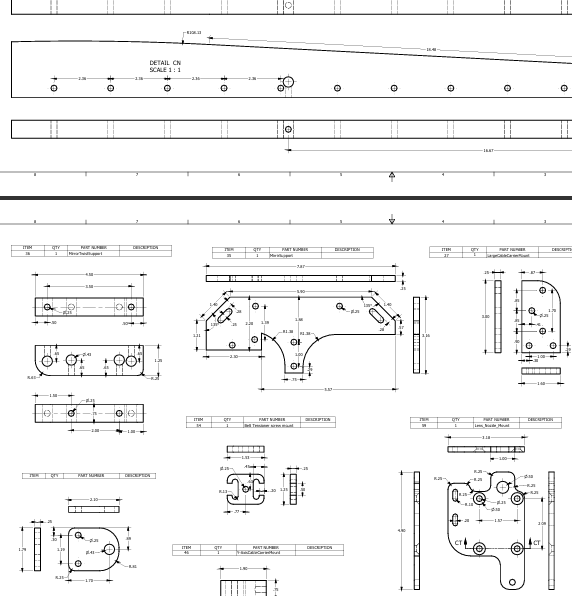

**1:1 Scale Plans**: Accurate full-scale plans for each component
**Bill of Materials (BOM)**: Comprehensive list of required materials
**Step-by-Step Assembly Instructions**: Clear guidance to put it all together
The plans allow you to recreate the VLXL with its powerful 80W CO2 laser tube and high-quality components. The machine's vertical orientation provides unique advantages, including a compact footprint and better containment of toxic gases.
Why Choose the Vertical Laser XL Plans?
Save space with a vertical design
Access to a large-format work area
High-quality linear rails (20mm guide rails and bearing blocks)
Customizable laser power with upgrade options to 100W or 130W
How to Access the Plans:
The digital plans are delivered via download. Once purchased, you'll receive a secure link to access the files.
Technical Details:
The plans include precise instructions for integrating electronics, including NEMA stepper motors, laser controllers, and water chillers. These comprehensive guides ensure you have all the details to build a fully functional and reliable machine.
Contact Us for More Information:
If you have any questions about the plans, assembly process, or materials, don't hesitate to contact us for assistance.
