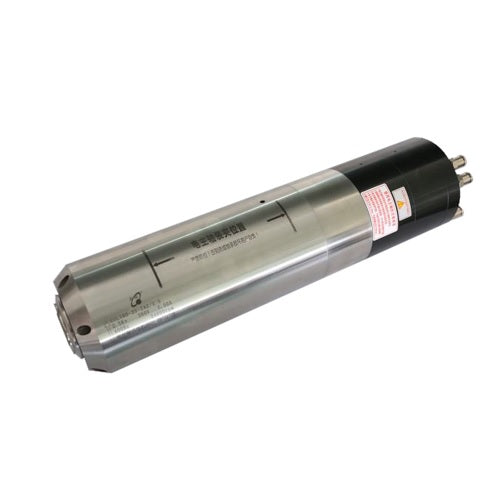

4.5KW Water-Cooled ATC CNC Spindle, 220VAC, 24,000 RPM, Pneumatic Automatic Tool Changer

The 4.5kW ATC Spindle is a high-performance, industrial-grade solution engineered for CNC applications that demand maximum throughput and precision. By integrating a pneumatic Automatic Tool Changer (ATC), this spindle eliminates the downtime associated with manual tool swaps, transforming a standard CNC router into a high-efficiency production center capable of complex, multi-tool machining sequences without operator intervention.

High-Speed Performance & Precision Engineering
Designed for high-speed routing and detailed engraving, this spindle delivers a potent 4.5kW (6.0 HP) of power with a maximum speed of 24,000 RPM. It features a 4-pole internal architecture and operates at 800Hz / 15.5A, providing the high torque and rotational stability required for clean cuts in various materials. The unit is built to run on 220VAC and is versatile enough to support both 1-phase and 3-phase power inputs, making it compatible with a wide range of industrial and advanced workshop electrical systems.

Advanced Thermal Management & Reliability
To maintain peak performance during long production cycles, the spindle utilizes a dedicated water-cooled design. This system is far more efficient than air cooling, especially in enclosed environments, as it consistently pulls heat away from the internal bearings and motor windings. CNC4PC recommends an operating temperature range of 22°C to 25°C for the cooling fluid to ensure maximum bearing life and dimensional stability of the spindle shaft. This precise thermal control is critical for maintaining accuracy during high-load carving or deep pocketing in hardwoods and plastics.

Pneumatic ATC Workflow & Production Benefits
The core advantage of this spindle is its pneumatic-controlled tool release mechanism. In a production environment, this allows the CNC controller to automatically eject the current tool holder and pick up the next one in seconds. This capability is essential for "lights-out" manufacturing and complex woodworking projects that require different bits for roughing, finishing, and drilling. By reducing manual interruption, the spindle significantly lowers the risk of human error in tool offset calibration and speeds up the overall "chip-to-chip" time for every job.

Industrial Applications & Versatility
This spindle is optimized for heavy-duty woodworking engraving and precision plastic machining. It is widely utilized in the production of furniture, cabinetry, and signage, where it excels at carving intricate patterns in MDF, plywood, and solid hardwoods. Its robust construction and high-speed capability also make it a reliable choice for machining non-ferrous metals and composite materials. Whether you are upgrading an existing machine or building a new high-end CNC platform, the 4.5kW ATC spindle provides the industrial "muscle" and automated intelligence needed for a professional, streamlined workflow.

Why Choose This ATC Spindle?
Investing in an Automatic Tool Changer spindle is the single most effective way to scale your CNC production. It moves your operation away from "one-off" hobbyist methods and into a professional workflow where the machine does the heavy lifting. With its combination of high-frequency power, water-cooled longevity, and pneumatic tool handling, this 4.5kW unit is the definitive choice for businesses looking to decrease lead times and increase part consistency.
