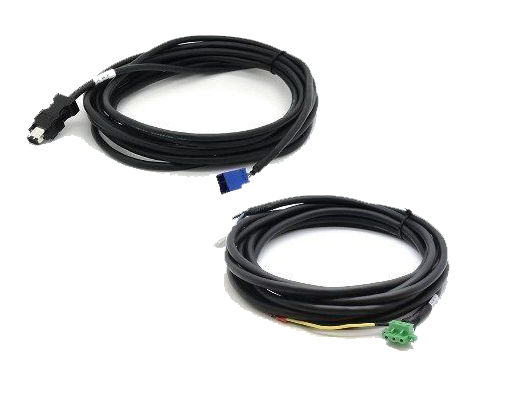

3 Meter Motor and Encoder Cable Set for DYN4 40mm, 60mm, and 80mm Frame Servo Motors

The DYN4-C3M-SET is a professional-grade, dual-cable solution designed specifically for DYN4 AC Servo Systems. This paired set includes both the high-voltage motor power cable and the high-speed signal encoder cable, providing everything required to connect a DYN4 servo motor to its corresponding drive in a single, convenient package.

Optimized Compatibility & Reach
Engineered for industrial reliability, this cable set is fully compatible with the 40mm, 60mm, and 80mm frame sizes of DYN4 servo motors. At 3 meters (9.8 feet) in length, these cables offer the necessary reach for medium-to-large CNC control cabinets and machine frames, allowing for flexible drive placement without the signal degradation or interference issues often found in non-shielded, hand-wired alternatives.

Industrial Build Quality
Shielded Motor Power Cable: Constructed to handle the high-frequency PWM switching of AC servo drives, the power cable features heavy-duty insulation and shielding to prevent electromagnetic interference (EMI) from leaking into nearby sensor lines.

High-Speed Encoder Cable: Specifically shielded for low-voltage differential signaling, this cable ensures that high-resolution position data is transmitted from the motor to the drive with zero packet loss, preventing "following errors" and erratic machine motion.

Plug-and-Play Connectors: Both cables come pre-terminated with the correct industrial-grade circular and rectangular connectors for a secure, vibration-resistant "click-in" installation.

Smart Value & Integration
Purchasing the DYN4-C3M as a complete paired set is the most cost-effective way to outfit your motion control system. While individual replacement cables are available for specialized repairs, this set provides a significant discount compared to purchasing the motor cable and encoder cable separately. By using a matched set, you ensure that the shielding and grounding protocols are consistent across both power and signal lines, which is critical for the long-term stability of high-performance servo systems.

Technical Specifications
System Compatibility: DYN4 AC Servo Drives

Motor Frame Compatibility: 40mm, 60mm, and 80mm

Length: 3 Meters (approx. 9.8 ft)

Cable Types Included: (1) Motor Power Cable and (1) Encoder Feedback Cable

Connector Type: Industrial-spec pre-terminated connectors

Why Choose the 3-Meter Set?
In precision CNC applications, the cable is just as important as the motor. "DIY" wiring is often the leading cause of servo instability and intermittent faults. This factory-terminated set guarantees proper impedance matching and noise rejection, ensuring your DYN4 system operates at its peak rated torque and accuracy from the first power-on
