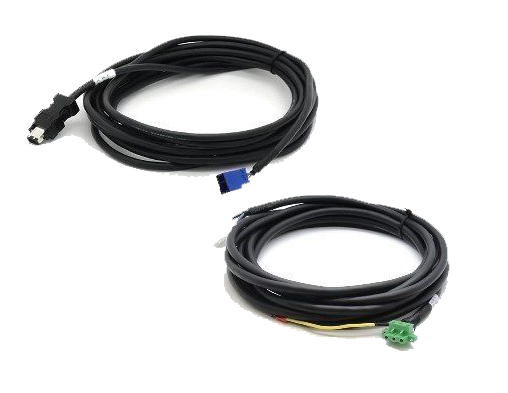

10 Meter Motor and Encoder Cable Set for DYN4 40mm, 60mm, and 80mm Frame Servo Motors

The DYN4-C10M-SET is an industrial-grade, long-distance cabling solution specifically engineered for large-scale DYN4 AC Servo Systems. This comprehensive set includes both the high-voltage motor power cable and the high-speed signal encoder cable, providing the complete 20-meter total of specialized wiring (10m each) required to connect your servo motor to its drive across expansive machine frames.

Maximum Reach & System Compatibility
Designed for heavy-duty CNC machinery, large-format routers, and automated production lines, the 10-meter (32.8-foot) length provides the maximum reach needed for overhead cable tracks and floor-to-cabinet routing. This set is fully compatible with the 40mm, 60mm, and 80mm frame sizes of DYN4 servo motors, ensuring a standardized and secure electrical connection for the most common torque ratings in the DYN4 family.

Industrial Grade Protection & Performance
Superior Shielded Power Delivery: At a 10-meter length, cable shielding is critical. The motor cable is built with heavy-duty industrial shielding to contain high-frequency PWM switching noise, ensuring that electromagnetic interference (EMI) does not disrupt nearby sensors, limit switches, or control logic.

Precision Data Integrity: The encoder cable is precision-shielded to protect low-voltage differential signals over long distances. This prevents data loss and signal "ghosting," ensuring the DYN4 drive receives perfect positioning feedback to eliminate "following errors" and erratic motion.

Factory-Terminated Reliability: Both cables feature pre-installed, industrial-spec connectors designed for high-vibration environments. These "plug-and-play" connections eliminate the high risk of wiring errors and signal degradation associated with field-soldered cables on long runs.

Unmatched Value for Large-Scale Builds
Purchasing the 10-meter paired set is the most efficient and cost-effective way to outfit a professional motion control system. While individual 10-meter cables are available for specialized maintenance, this combined set offers a significant discount over purchasing the motor and encoder cables separately. By utilizing a matched factory set, you ensure that the grounding and shielding architecture remains consistent across the entire axis, which is vital for maintaining the high-speed stability of your servo loops.

Technical Specifications & Kit Contents
The system is optimized for DYN4 AC Servo Drives and supports motor frame sizes of 40mm, 60mm, and 80mm. Each package includes one 10-meter Motor Power Cable and one 10-meter Encoder Feedback Cable, both featuring integrated industrial connectors. The 10-meter length (approx. 32.8 ft) makes it the definitive choice for builders who require maximum flexibility in large-scale workshop layouts without sacrificing signal integrity or safety.

Why the 10-Meter Set is the Professional Choice
On a large machine, the cables are often the most overlooked point of failure. Using unshielded or poorly terminated cables over a 10-meter distance is the primary cause of intermittent faults and system noise. The DYN4-C10M-SET provides the industrial-grade shielding and factory-tested reliability needed to ensure your high-torque servo system runs smoothly, accurately, and without interference, no matter how large the machine.
