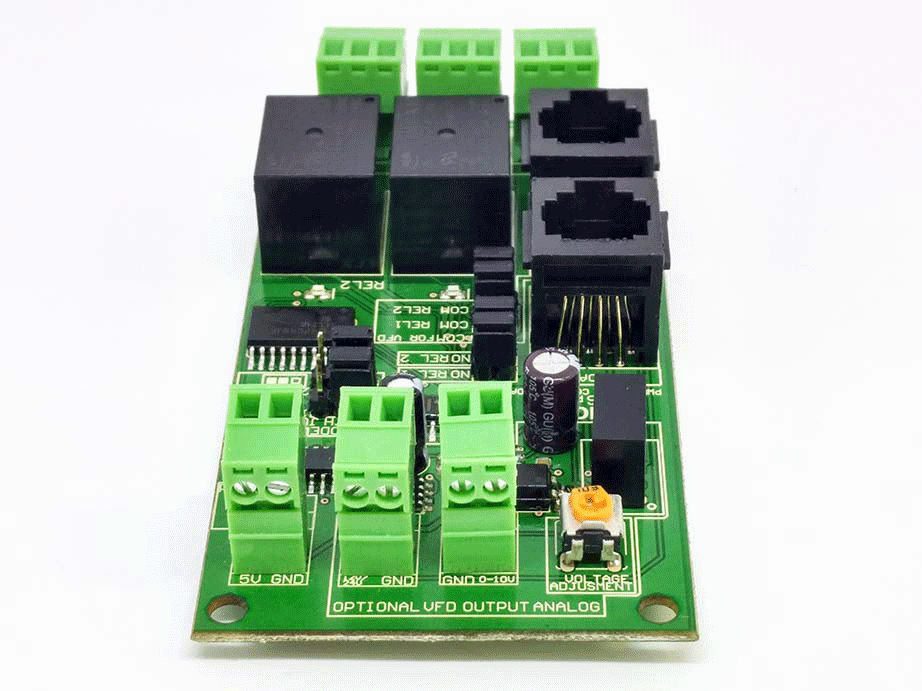

C41S-PWM Spindle Speed Control Board with 0–10V Analog Output

C41S-PWM Spindle Speed Control Board

The C41S-PWM is a signal conversion board that turns a PWM signal from your CNC controller into a 0–10V analog output — the standard signal most VFDs and motor drives use for external spindle speed control. With this board in place, the spindle speed you set in your CNC software is the spindle speed your VFD actually delivers.

This is the right board if your CNC controller outputs a PWM signal for spindle speed (Mach3, Mach4, and many other CNC control systems do) and your VFD or motor drive accepts a 0–10V analog speed reference. The C41S-PWM bridges those two signals so you can replace manual potentiometer adjustment with full software-controlled speed.

Why Choose the C41S-PWM?

• PWM to 0–10V conversion: Connects your CNC controller's PWM spindle output to your VFD's 0–10V analog speed input.
• Software-controlled spindle speed: Set RPM in your CAM or CNC control software and the spindle responds automatically — no more manual dials.
• Works with Mach3 and Mach4: Compatible with the standard PWM spindle output used by Mach3, Mach4, and other CNC controllers that provide a PWM speed signal.
• Compact form factor: Designed for clean installation inside a CNC control box alongside breakout boards, drives, and relay boards.
• Standard CNC building block: One of the most common ways to add proper CNC-controlled spindle speed to a VFD-driven router or mill.
• Pairs cleanly with relay control: Often combined with a relay board (like the C37) for spindle enable, coolant, or accessory switching from the same CNC system.

Main Features

• PWM signal input from CNC controller
• 0–10V analog output for compatible VFDs and motor drives
• Used for external spindle speed control
• Designed for CNC control box installation
• Compatible with Mach3, Mach4, and other CNC systems that provide a PWM spindle speed signal
• Works alongside relay boards, breakout boards, and other CNC control electronics

Simple Explanation

Most CNC control software sends out a PWM signal to tell the spindle how fast to turn. Most VFDs, on the other hand, expect a 0–10V analog voltage to set spindle speed. The C41S-PWM sits between the two and translates one into the other.

With it installed and wired correctly, the spindle speed value in your CNC software is the spindle speed your VFD commands at the motor. That means precise, repeatable, software-driven spindle control instead of guessing with a knob.

Common Uses

• VFD spindle speed control on CNC routers
• VFD spindle speed control on CNC mills
• Mach3 setups using PWM spindle output
• Mach4 setups using PWM spindle output
• Replacing manual potentiometer-based speed control with CNC-controlled speed
• CNC control box upgrades and rebuilds
• Spindle retrofits that need software-controlled speed

Important Compatibility Notes

• The C41S-PWM is not a VFD and not a spindle drive. It is a signal conversion board.
• Your CNC controller must provide a PWM signal for spindle speed.
• Your VFD or motor drive must accept a 0–10V analog input for external speed control.
• Wiring, ground reference, and signal polarity must be correct on both sides for the board to function as expected.
• Always confirm your VFD's input requirements and your CNC software's spindle output settings before connecting power.
• If you also need a relay output for spindle enable, coolant, or accessory switching, consider the CNC Spindle Speed Control Bundle (C41S-PWM + C37) instead of buying separately.
