AXBB-E Ethernet CNC Motion Controller & Breakout Board Combo

AXBB-E Ethernet CNC Motion Controller & Breakout Board Combo

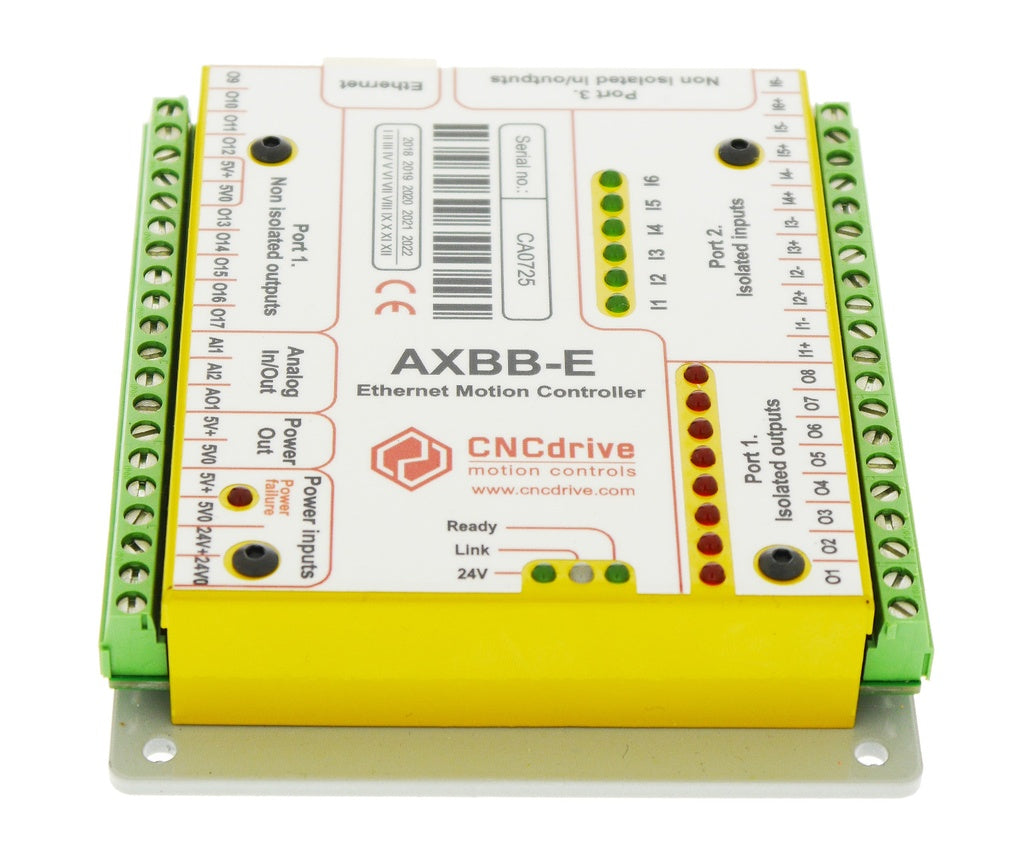

The AXBB-E is a complete Ethernet CNC motion controller and breakout board combined into one compact board. It is designed to simplify CNC control box wiring by giving you motion control, step/direction outputs, isolated inputs, relay-style output capability, charge pump support, and breakout board functionality in a single unit.

Instead of buying a separate motion controller and breakout board, the AXBB-E gives CNC builders an all-in-one control solution that connects to the computer through Ethernet. It can be connected directly to a computer network port or through a router/switch on a local network, depending on your setup. The AXBB-E is listed by CNCdrive and CNC4PC as compatible with UCCNC, Mach3, and Mach4.

Why Choose the AXBB-E?

• All-in-one CNC control solution: Combines an Ethernet motion controller and breakout board on one board, reducing the number of separate components needed.
• Ethernet connection: Connects to the control computer through a network port, either directly or through a local network switch/router.
• Works with popular CNC software: Compatible with UCCNC, Mach3, and Mach4 software setups.
• Cleaner control box wiring: Helps simplify wiring compared with using a separate controller, breakout board, and extra I/O boards.
• Isolated inputs and outputs: Helps protect sensitive control electronics and improves reliability in CNC environments.
• Good for stepper or servo systems: Designed for machines using step and direction style motor drivers.
• Built-in charge pump output: Helps prevent unwanted machine activation unless the CNC control software is running properly.
• LED indicators: Built-in LEDs on isolated I/O points make wiring and troubleshooting easier.

Main Features

• Complete Ethernet motion controller and breakout board in one unit
• Works with UCCNC, Mach3, and Mach4 software
• Ethernet communication through direct PC connection or LAN connection
• 8 optically isolated high-speed N-channel power MOSFET transistor outputs
• 9 non-isolated buffered TTL outputs for step/direction signals, laser driver control, or other signal outputs
• Isolated charge pump output with power N-channel MOSFET transistor
• 6 high-speed optoisolator inputs
• 1 IDC26 non-isolated extension port with standard LPT port pinout
• Extension port provides 12 outputs and 5 inputs
• LED indicators on isolated input/output connections
• Isolated I/O supports 24V-capable signals
• Designed for step and direction motor-driver systems

Customer-Friendly Explanation

The AXBB-E is the main control board for your CNC machine. It takes commands from your CNC software on the computer and sends motion signals to your motor drivers. It also provides inputs and outputs for switches, sensors, relays, charge pump safety, and other machine-control functions.

The big advantage is that this board combines two parts that are often purchased separately: the motion controller and the breakout board. That can make your control box simpler, cleaner, and easier to troubleshoot.

Common Uses

• CNC router control systems
• CNC mill retrofits
• CNC plasma table control boxes
• UCCNC-based CNC builds
• Mach3 or Mach4 Ethernet controller upgrades
• Stepper motor driver control
• Servo driver control with step/direction inputs
• Limit switch, home switch, sensor, and machine I/O wiring
• Laser driver or accessory output control where compatible

Software Compatibility

Important Compatibility Notes

• The AXBB-E is a motion controller and breakout board combined.
• It is designed for CNC systems using step and direction motor drivers.
• Confirm compatibility with your CNC software, computer, motor drivers, VFD/spindle, switches, and wiring setup before ordering.
• UCCNC software license may be sold separately depending on the listing/package.
• Mach3 and Mach4 may require the correct plugin, license, and configuration.
• This board is not a motor driver. Separate stepper or servo drives are still required.
