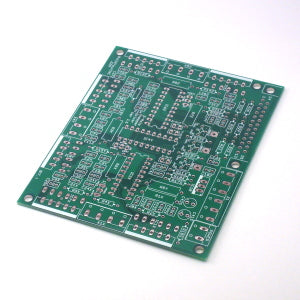

4A RMS Stepper Driver PCB Explanation
This page explains the purpose of a 4A RMS stepper driver PCB and how it fits into a CNC electronics setup.
Stepper drivers are used to control stepper motors. In CNC machines, they help move the machine axes by sending controlled power to the motors.
What Is a Stepper Driver?
A stepper driver is an electronic board that controls a stepper motor. The CNC controller sends step and direction signals, and the stepper driver uses those signals to move the motor.
The driver is an important part of the motion control system because it controls how much current goes to the motor and how the motor steps.
What Does 4A RMS Mean?
The 4A RMS rating refers to the current rating of the driver. This matters because stepper motors need the correct current to run properly.
If the driver current is too low, the motor may lose torque. If it is too high, the motor or driver can overheat.
Where It Fits in a CNC System
A basic CNC electronics setup often includes:
- CNC controller
- Stepper drivers
- Stepper motors
- Power supply
- Limit switches
- Emergency stop circuit
- Wiring and connectors
The stepper driver sits between the CNC controller and the stepper motor.
Things to Check
Before using or replacing a stepper driver, check the electrical requirements.
- Motor current rating
- Driver current rating
- Power supply voltage
- Wiring connections
- Cooling requirements
- Step and direction signal compatibility
Do not guess on wiring or current settings. Incorrect wiring can damage electronics.
Important Safety Note
CNC electronics can be damaged if wired incorrectly. If you are not sure how to wire a stepper driver, ask someone experienced with CNC electronics.
Always power off the system before wiring or changing connections.
Summary
A 4A RMS stepper driver PCB is part of a CNC motion control system. It helps control the stepper motors that move the machine.
The most important things to check are motor compatibility, current settings, voltage, wiring, and cooling.
